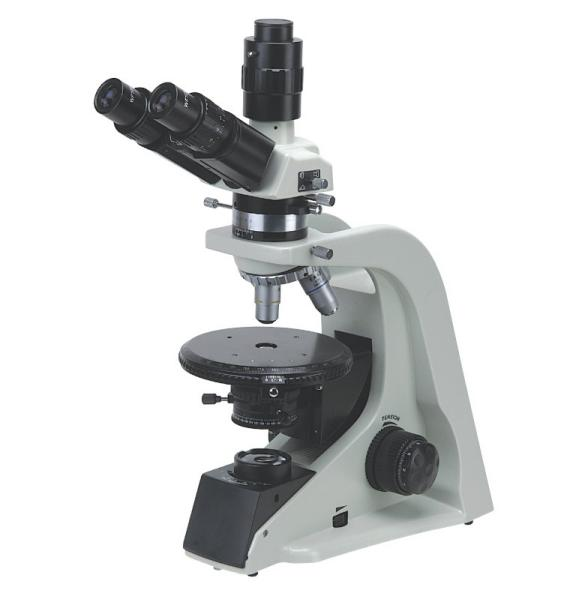

40X-630X Professional Polarizing Trinocular Microscope for Life Science, Geology (BM-2009TP)

40X-630X Professional Polarizing Trinocular Microscope for Life Science, Geology (BM-2009TP)

1. 45mm Strain Free Achromatic Objective: 4X,10X,40X,63X(or Infinity System Strain free Plane-scope Achromatic Objective 5X,10X,40X)

2. Wide Field Plane-Scope Eyepiece WF10X/18 with scale of Crosshair and 0.1mm and Wide Field Plane-Scope Eyepiece WF10X/18

3. Total Magnification: 40X-630(or 50-400X)

4. Sliding Trinocular Head(or binocular head),Interpupillary Distance: 55-75mm, 45º Inclined,360º Rotatable

5. The Adjustable Height range of the vertical Tube: 30mm

6. Revoving Round Stage: Ø160mm.360ºRotatable and Graduated 1ºIncrements,Minimum Resolution 6' When Using Venire Scale Center Adjustable

7. Ø2-Ø30mm Iris Diaphragm And Ø32 Filter;Coaxial Coarse And Fine Focusing Adjustable, ABBE Condenser: N.A.1.25

8. Coaxial Coarse And Fine Focusing Adjustable Mechanism: 35mm,Precision:0.002mm

9. Rotatable Analyzer with Graduation 0º-90º,Sliding out of Optical Path, Bertrand Lens,Sliding out of Optical Path

10. Optical Compensator: λSlip(first class red),1/4λSlip,Quartz Wedge Polarize: Under the Stage,0ºAdjustable 360º Rotatable

11. Built-in Adjustable Brightness Halogen Lamp 6V/20W(or 3.5V/1W LED Lamp) and Kohlar Illumination System
