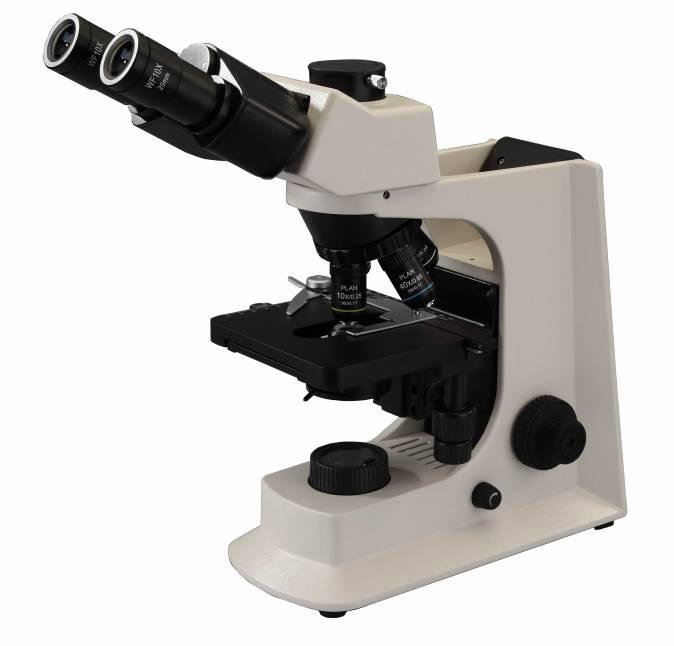

Bestscope BS-2036BT Biological Microscope with Excellent Optional System IntroductionBS-2036BT microscopes are high level microscopes which are specially designed for college education, medical and laboratory study. It adopts an Infinite Optional system, beautiful structure and ergonomic design. Wit......
| Specification | ||
| Model | BS-2036BT | |
| Optional System | Finite Optional System | Yes |
| Infinite Optional System | ||
| Viewing Head | Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 50-75mm | Yes |
| Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 50-75mm, Light Distribution: 20:80 | Optional | |
| Eyepiece | WF10×/18 | |
| WF10×/20 | Yes | |
| WF16×/13 | Optional | |
| Reticule Eyepiece WF 10X-18 mm (0.1mm) | Optional | |
| Reticule Eyepiece WF 10X-20 mm (0.1mm) | Optional | |
| Achromatic Objective | 4× | |
| 10× | ||
| 40×(S) | ||
| 100×/1.25 (Oil) (S) | ||
| 20× | ||
| 60× (S) | ||
| Plan Objective | 4× | Yes |
| 10× | Yes | |
| 40×/0.65 (S) | Yes | |
| 100×/1.25 (Oil) (S) | Yes | |
| 20× | Optional | |
| 60× (S) | Optional | |
| Infinity E-Plan Objectives | 4× | |
| 10× | ||
| 40× (S) | ||
| 100× (Oil) (S) | ||
| Plan 20× | ||
| Plan 60× (S) | ||
| Nosepiece | Backward Quadruple Nosepiece | Yes |
| Backward Quintuple Nosepiece | Optional | |
| Focusing | Coaxial Coarse & Fine Focusing knobs, Travel Range: 26mm, Scale:2um | Yes |
| Stage | Stage Size: 145×140mm, Cross Travel 76×52mm, Two Slide Holder | Yes |
| Condenser | Abbe Condenser NA1.25 with Iris Diaphragm | Yes |
| Illumination | 6V/20W Halogen Lamp, Brightness Adjustable | Yes |
| 6V/30W Halogen Lamp, Brightness Adjustable | Optional | |
| 3W-LED Illumination Systems (non-rechargeable), Brightness Adjustable | Optional | |
| 0.3W-LED Illumination Systems (Rechargeable), Brightness Adjustable | Optional | |
| Field Diaphragm | Optional | |
| Dark Field | N.A.0.9 (Dry) Dark Field Attachment | Optional |
| Polarizing Unit | Analyzer/Polarizer | Optional |
| Phase contrast unit | With Infinite Plan Objectives 10× /20× /40× /100× | Optional |
| Fluorescence unit | Epi Fluorescence unit (three-hole slide) (B,G, 100W mercury lamp ) | Optional |
| Epi Fluorescence unit (three-hole slide) (B,G, 3W-LED lamp ) | Optional | |
| Filter | Blue | Yes |
| Green | Optional | |
| Yellow | Optional | |
| C-Mount | 0.47X (Focus adjustable) | Optional |
| 1X | Optional | |
| Mirror | Reflect Mirror | Optional |
| Cable Winding Unit | Used to wind cable together on back of the microscope | Optional |
| Dimension & G.W. | 42cm*28cm*45cm, 8kg | Yes |
| Note: Yes Standard Outfit, Optional Standard Optional | ||
