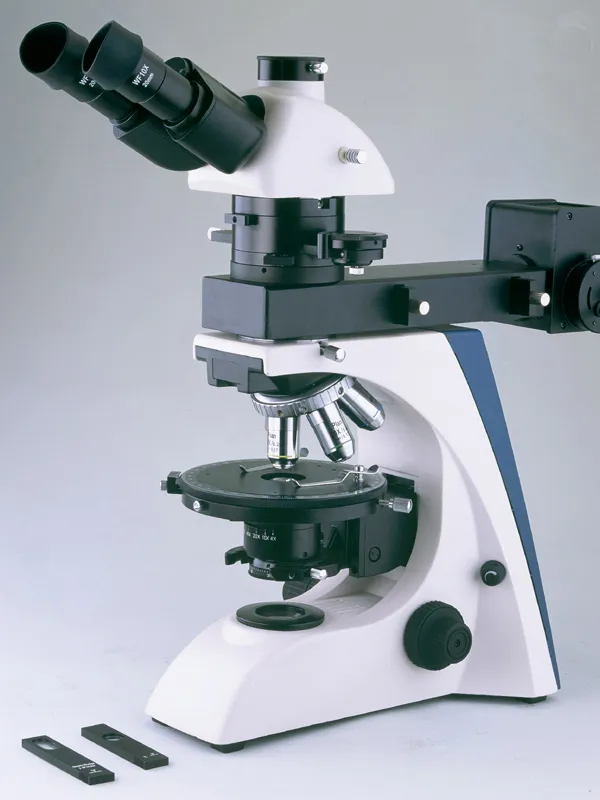

Bestscope BS-5062 Polarizing Microscope with Infinite Optical System
IntroductionBS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The......
Send Inquiry
Product Description
Introduction
BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.
Features
1.Excellent Infinite Optical System.
2.Widely used in geology, Mineralogy, Fossil fuel exploration.
3.Single polarization, othorgonal polarization or conoscopic observation is available.
Application area
BS-5062 series polarizing microscopes are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.
Specification
Note: Yes Standard Outfit, Optional Standard Optional
BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.
Features
1.Excellent Infinite Optical System.
2.Widely used in geology, Mineralogy, Fossil fuel exploration.
3.Single polarization, othorgonal polarization or conoscopic observation is available.
Application area
BS-5062 series polarizing microscopes are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.
Specification
| Item | Specification | BS-5062B | BS-5062 BR | BS-5062 BTR |
| Optical System | Infinite Optical System | Yes | Yes | Yes |
| Viewing Head | Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 50-75mm. | Yes | Yes | Yes |
| Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 50-75mm, Light Distribution: 0:100 | Optional | Optional | Optional | |
| Eyepiece | WF10×/18mm | Yes | Yes | |
| WF10×/18 mm (Reticule 0.1mm) | Yes | Yes | ||
| WF10×/20 mm | Yes | |||
| WF10×/20 mm (Reticule 0.1mm) | Yes | |||
| WF16×/13mm | Optional | Optional | Optional | |
| Non-stress Infinity Plan Objective | 4×/0.10 | Yes | Yes | Yes |
| 10×/0.25 | Yes | Yes | Yes | |
| 20×/0.40(S) | Yes | Yes | Yes | |
| 40×/0.65(S) (0.17mm cover glass) | Yes | Yes | ||
| 40×/0.65S) (no cover glass)(Reflected) | Yes | Optional | ||
| 60×/0.80 (S) | Optional | Optional | Yes | |
| LWD Infinity Plan Objective (no cover glass) (Reflected) | 20×/0.40 (S) W.D=8.35mm | Optional | Optional | |
| 40×/0.65 (S) W.D=3.90mm | Optional | Optional | ||
| 50×/0.70 (S) W.D=1.95mm | Optional | Optional | ||
| 80×/0.80 (S) W.D=0.85mm | Optional | Optional | ||
| Nosepiece | Backward Quintuple nosepiece, center adjustable | Yes | Yes | Yes |
| Analyzer Unit | With Scale, Rotatable 360°(Module Type, Can Be Locked) | Yes | Yes | Yes |
| Bertrand Lens | Built In, Center Adjustable | Yes | Yes | Yes |
| Optical Compensator | λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (I-IVClass) | Yes | Yes | Yes |
| Revolving Round Stage | Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6' | Yes | Yes | Yes |
| Mechanical Stage | Polarizing Attached Mechanical Stage with X-Y movement | Optional | Optional | Optional |
| Focusing | Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm | Yes | Yes | Yes |
| Swing-out Condenser | N.A.0.9/0.13 swing out achromatic condenser | Yes | Yes | |
| Polarizing Unit | with Scale, Rotatable 360°, Can Be Locked | Yes | Yes | |
| Transmitted Illumination | Koehler Illumination 6V/20W Halogen Lamp | Yes | Yes | |
| Koehler Illumination 6V/30W Halogen Lamp | Optional | Optional | ||
| Filter | Blue | Yes | Yes | Yes |
| Amber, Green, Neutral | Optional | Optional | Optional | |
| Reflecting Polarizing Unit | Halogen Lamp House 12V/50W | Yes | Yes | |
| Power House | Yes | Yes | ||
| Polarizer Choosing Slide | Yes | Yes | ||
| C-mount | 1× | Optional | Optional | Optional |
| 0.5× (Focus adjustable) | Optional | Optional | Optional |
Note: Yes Standard Outfit, Optional Standard Optional
