              High Resolution Stereo Zoom HD Digital Microscope
              • High Resolution Stereo Zoom HD Digital MicroscopeHigh Resolution Stereo Zoom HD Digital Microscope
              • High Resolution Stereo Zoom HD Digital MicroscopeHigh Resolution Stereo Zoom HD Digital Microscope
              • High Resolution Stereo Zoom HD Digital MicroscopeHigh Resolution Stereo Zoom HD Digital Microscope
              • High Resolution Stereo Zoom HD Digital MicroscopeHigh Resolution Stereo Zoom HD Digital Microscope

              High Resolution Stereo Zoom HD Digital Microscope

              High Resolution Stereo Zoom HD Digital MicroscopeThe high performance GL 6000 Series stereo microscopes utilize a Greenough design and feature a l:6.5 zoom ratio with a 103mm working distance and a large visual Field (23mm) Their parfocality allows an erect Image of the observed specimens to stay In......

              Send Inquiry

              Product Description

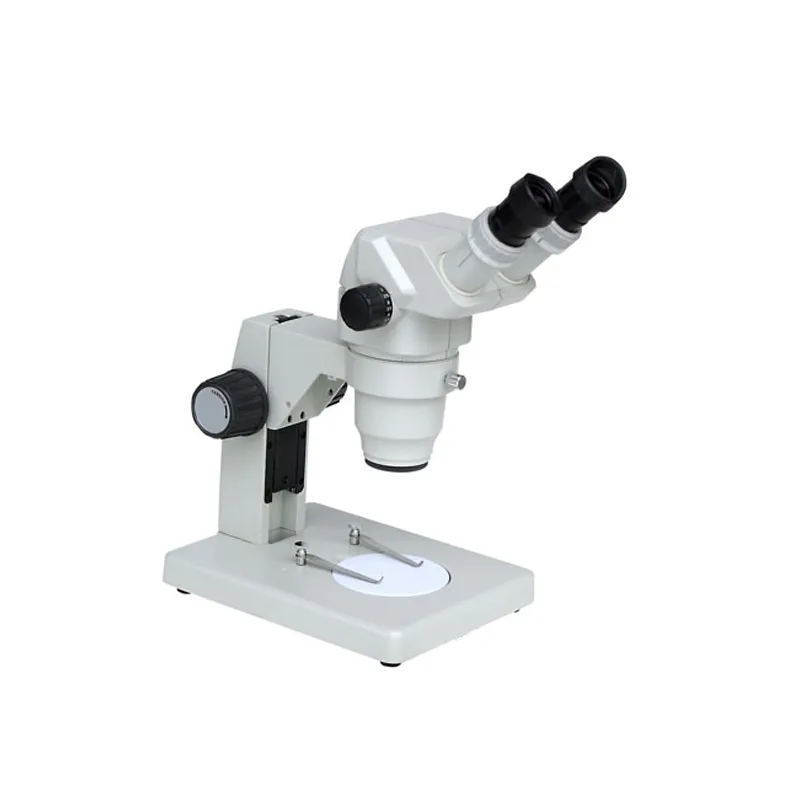

              High Resolution Stereo Zoom HD Digital Microscope

              The high performance GL 6000 Series stereo microscopes utilize a Greenough design and feature a l:6.5 zoom ratio with a 103mm working distance and a large visual Field (23mm) Their parfocality allows an erect Image of the observed specimens to stay In focus through repeated changes In the magnification Adding to the ergonomics Is a choice of observation angle,either 45 0r 60 degrees The GL6445B zoom stereo Microscopes with built-In coaxial Illumination,Is the International coaxial illumination Technology, wide voltage It is particularly suitable for the test of LC maked film.LCD printing paste, LED roduction,PCB board,pressing and plating and observation micro-surface In Integrated circuit, metal parts, semiconductor
              High Resolution Stereo Zoom HD Digital Microscope


              Standard configurations
              Zoom ratio1:6.5
              Objective zoom range1X-6.5X
              EyepiceSWF10X/23mm
              Working distance103mm
              Interpupillary distance adjustment range52mm-75mm
              Binocular Angle of ViewInclination45/60
              Diopter adjustment±5 diopter
              Optical Body Rotation360

              Technical data
              ProjectAuxiliary ObjectiveEyepieceWorking distance(mm)
              SWF10XWFl5XWF20XWF25X
              Magnifi-cationVisual fieldMagnifi-cationVisual fieldMagnifi-cationVisual fieldMagnifi-cationnVisual field
              Data0.5X5X-32.5X46-7.4  7.5X-48.8X32-510X-65X26-412.5X-81.25.3X24-..6163
              0.75X7.5X- 48.8X30.7-4.711.3X-73.1X21.3-3.315X-97.57.3-2.718.8X-121.9X16-2.5117
              1X10X-65X23-3.515X-97.5X16-2.520X-130X13-225X-162.5X12-1.8103
              1.5X15X-97.5X15.3-2.422.5X-146X10.7-1.630X-185X8.7-1.337.5X-243.8X8-1.245
              2X20X-
              130X
              11.5-1.830X-195X8-1.240X-260X6.5-150X-325X6-0.940


              Packing and Shipping
              Carton Case

              FAQ
              1. How can I choose the suitable one?
              Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
              2. Does your price is competitive?
              Dear customer, we make sure to offer you the best quality with competitive price.
              3. How can I pay?
              Dear customer, we accept many payment term, such as T/T, Western Union…
              4. When I receive it after pay?
              Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
              5. How to deliver?
              Dear customer, we can send by Express, by Sea and by Air.
              6. Is will be broken during transport?
              Dear customer, please do not worry, we do standard export package.
              7. What should I do if I do not know how to use?
              Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
              8. What should I do if some parts broken?
              Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


              Company Show
              High Resolution Stereo Zoom HD Digital Microscope

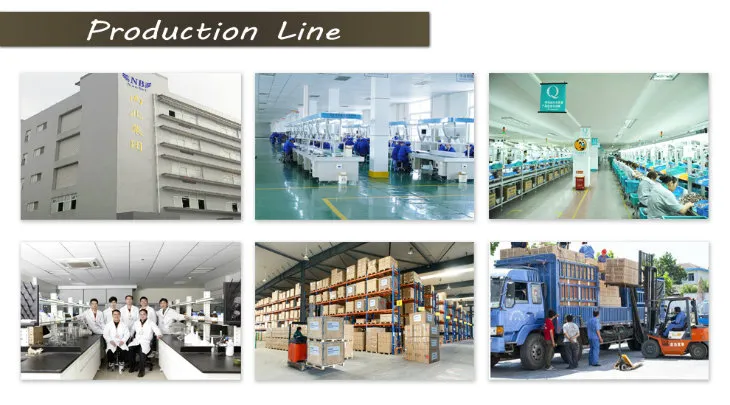

              Factory Show

              High Resolution Stereo Zoom HD Digital Microscope

              Certification

              High Resolution Stereo Zoom HD Digital Microscope

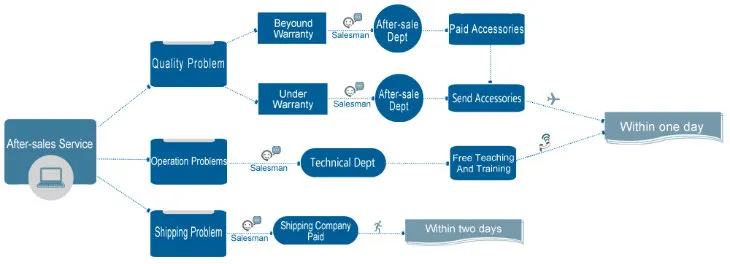

              Warranty And After-sale Service

              ♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
              High Resolution Stereo Zoom HD Digital Microscope
