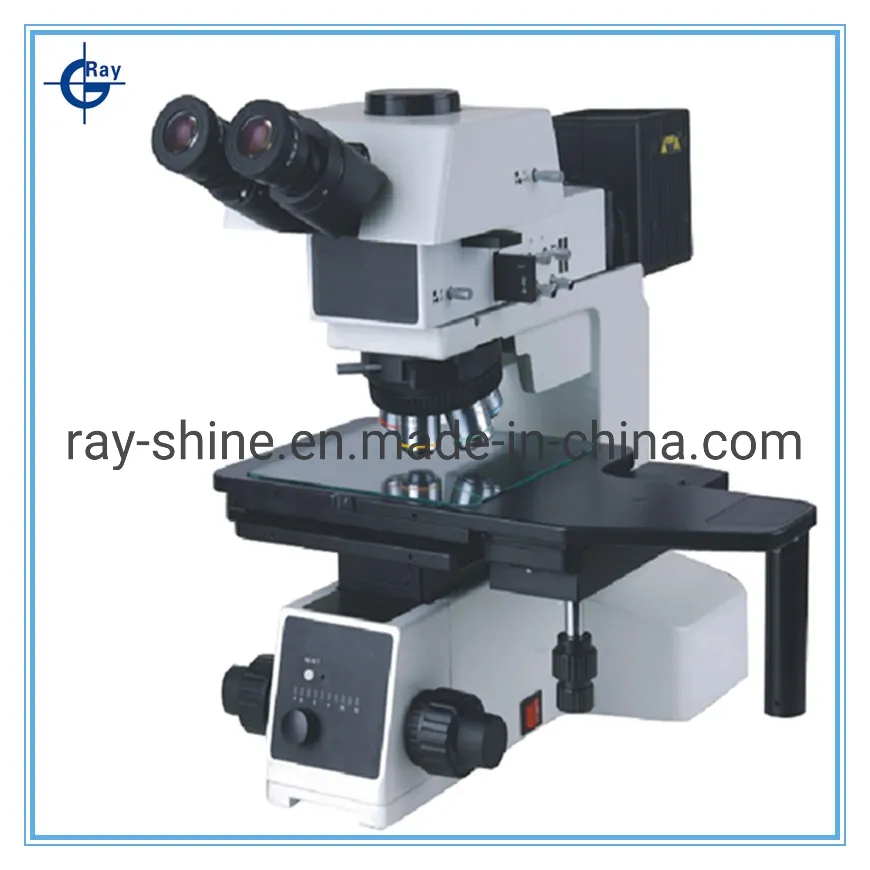

Metallographic Analysis Optical 50X 100X 200X 200X Digital Polarizing Metallurgical Microscope
Parameter: ModelRAY-JX33ROptional observe methodBright field/dark field/polarized light/DIC Optical systemInfinity color difference correction optical system EyepiecePL10X/22 Flat High Eye Point Eyepieceobjective lensLMPL-BD Infinity Long Working Distance Bright and Dark Field MetallographicObjecti......
Send Inquiry
Product Description
Parameter:
Usage:

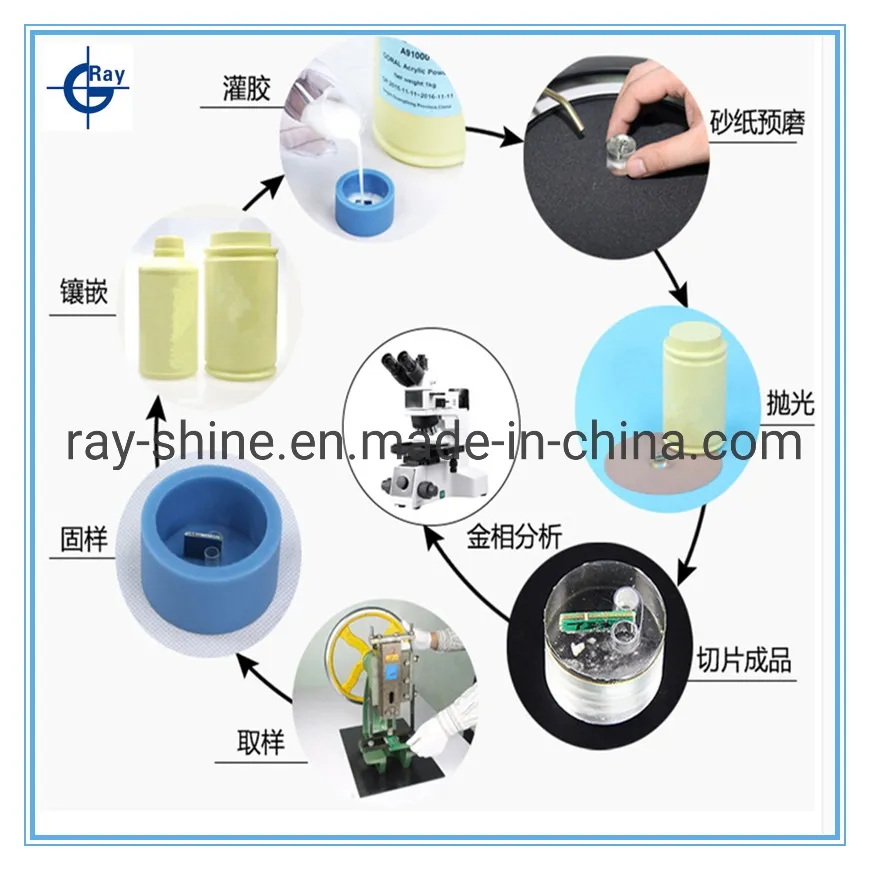

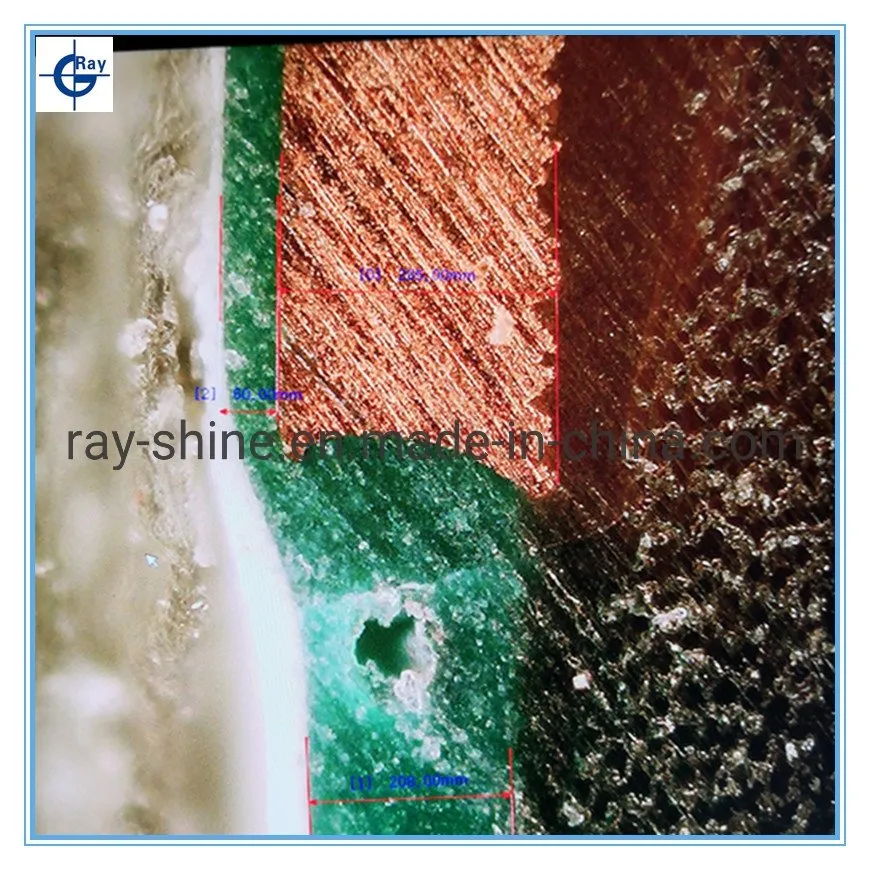

It's used for analyzing the microsection for green oil layer and electroplating layer for PCB laboratory
Company Introduction

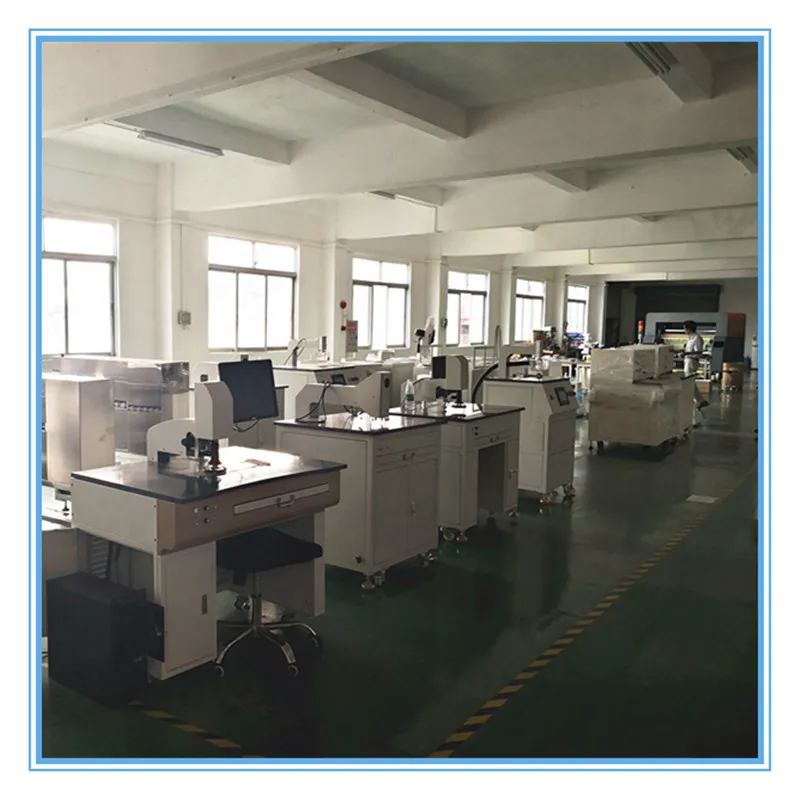

Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film researching, manufacturing, and selling and technology support.
FAQ:
1. What's the eye lens and Object lens ?
----Eye lens 10X, Object lens 5X, 10X,20X,50X,100X.
2.For PCB Industrial, can it see green oil?
----Yes, this model have dark filed, can check green oil and electro-plating layer.
3.How about the lead time?
----Normally 7-10 days after payment receiving.
Packing and Shipping
Packing Method:
Standard wooden package
Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
| Model | RAY-JX33R | |
| Optional observe method | Bright field/dark field/polarized light/DIC | |
| Optical system | Infinity color difference correction optical system | |
| Eyepiece | PL10X/22 Flat High Eye Point Eyepiece | |

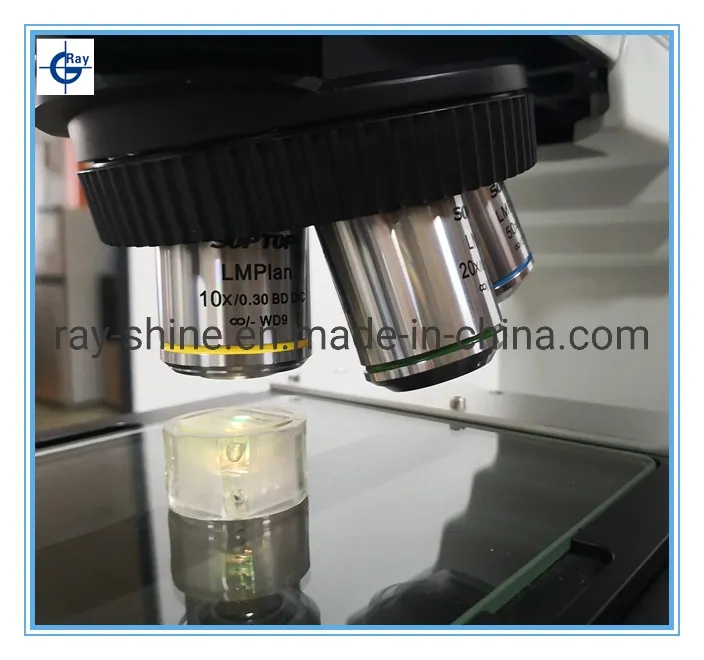

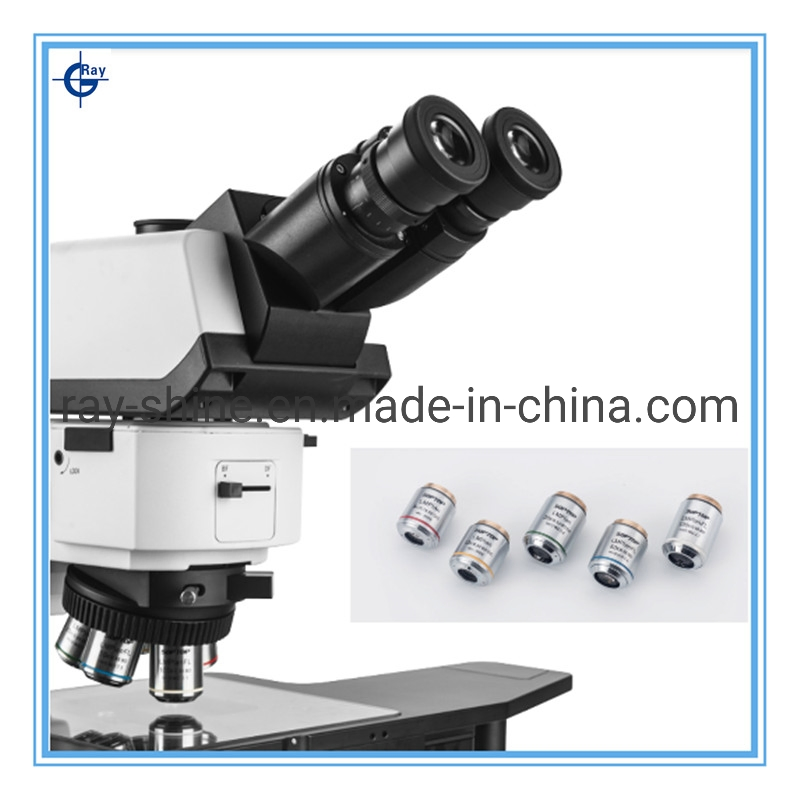

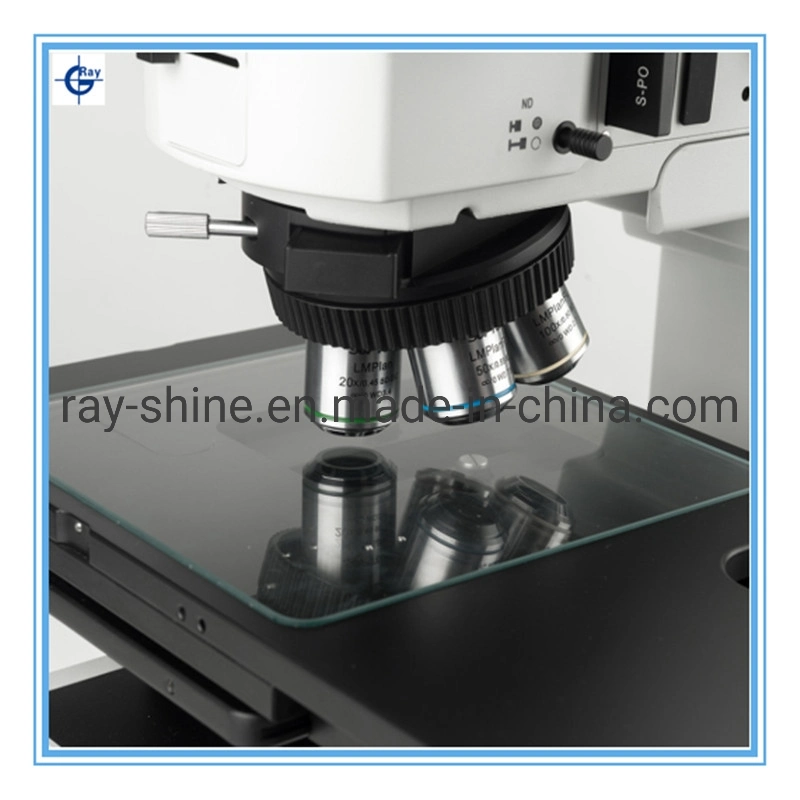

objective lens | LMPL-BD Infinity Long Working Distance Bright and Dark Field Metallographic Objectives, Standard configuration : objectives lens 5X, 10X, 20X, 50X | |

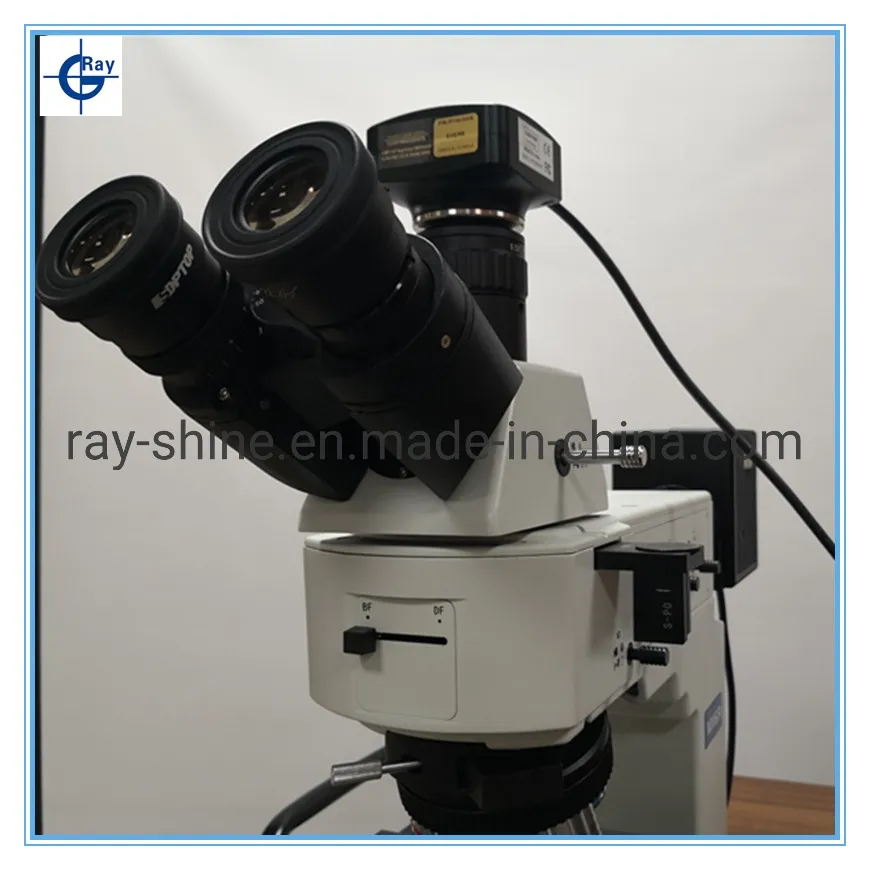

| observation tube | Positive observation tube, 30° hinged trinocular, split ratio, binocular: trinocular = 0:100 | |
| Converter | 5-hole introverted light and dark field converter with DIC slot | |
object stage | 4" two-layer mechanical mobile platform, travel 105x 105mm, glass worktable, right-hand X, Y mobile hand wheel, can be quickly moved | |
| microscope body | Coarse fine-tuning coaxial, coarse adjustment stroke 33mm, fine adjustment accuracy 0.001mm, with coarse adjustment mechanism upper limit position and tightness adjustment device. Built-in 90-240V wide voltage transformer, single power output | |
Reflective luminaire system | With variable field stop and aperture stop, both adjustable center; with color filter slot and polarization device slot; with diagonal illumination switch lever,12V100W halogen lamp, adjustable light intensity | |
Industrial CCD Camera | CCD : USB 3.0 Image sensor : Colorful CMOS Sensor size : 1/1.9" (7.2*4.5) Pixels size : 3.75*3.75 FPS/resolution :30@1920*1200 | |

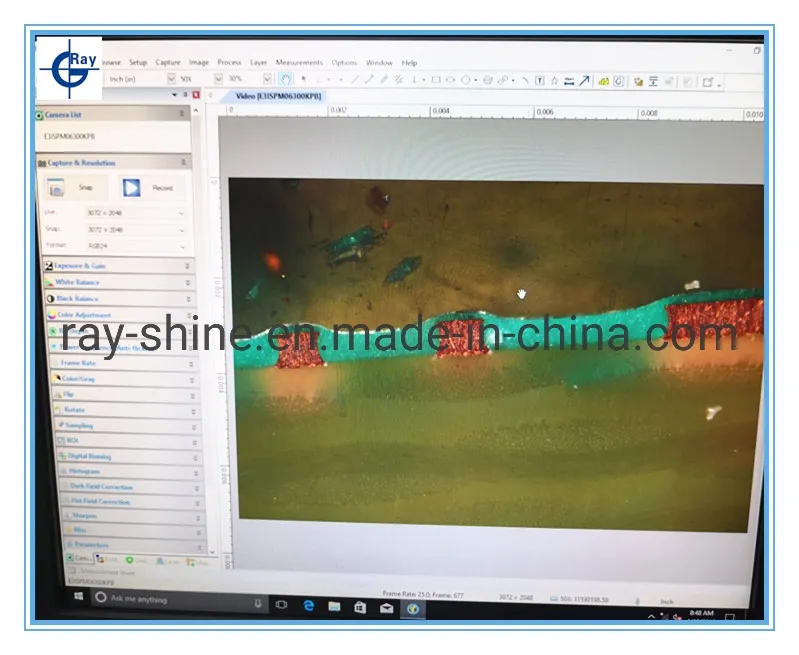

Industrial measurement software(Standard equipped with camera) | Supports multi-layer measurements to ensure measurement and image independence Ultra-fine color engine Unlimited language support A variety of practical processing functions Compatible Windows XP, Vista,,20087/8/1032/64 bit)/ Mac OSX/Linux EDF depth of field expansion: EDF can fuse images from different focal planes into a clear image | |
Usage:
It's used for analyzing the microsection for green oil layer and electroplating layer for PCB laboratory
Company Introduction
Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film researching, manufacturing, and selling and technology support.
FAQ:
1. What's the eye lens and Object lens ?
----Eye lens 10X, Object lens 5X, 10X,20X,50X,100X.
2.For PCB Industrial, can it see green oil?
----Yes, this model have dark filed, can check green oil and electro-plating layer.
3.How about the lead time?
----Normally 7-10 days after payment receiving.
Packing and Shipping
Packing Method:
Standard wooden package
Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
