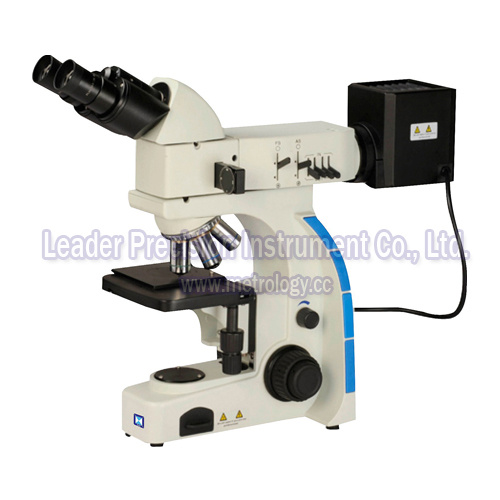

Routine Laboratory Binocular Metallurgical Microscope (LM-202)
Below picture is triocular metallurgical microscope LM-302 Usage:Upright Metallurgical Microscope LM-202 is used to observe and identify the structure of various metal and alloy, The metallurgical Microscope is widely used in institute and laboratoryStandard delivery:Main unit: 1pcs10x, 20x, 50x, 80......
Send Inquiry
Product Description

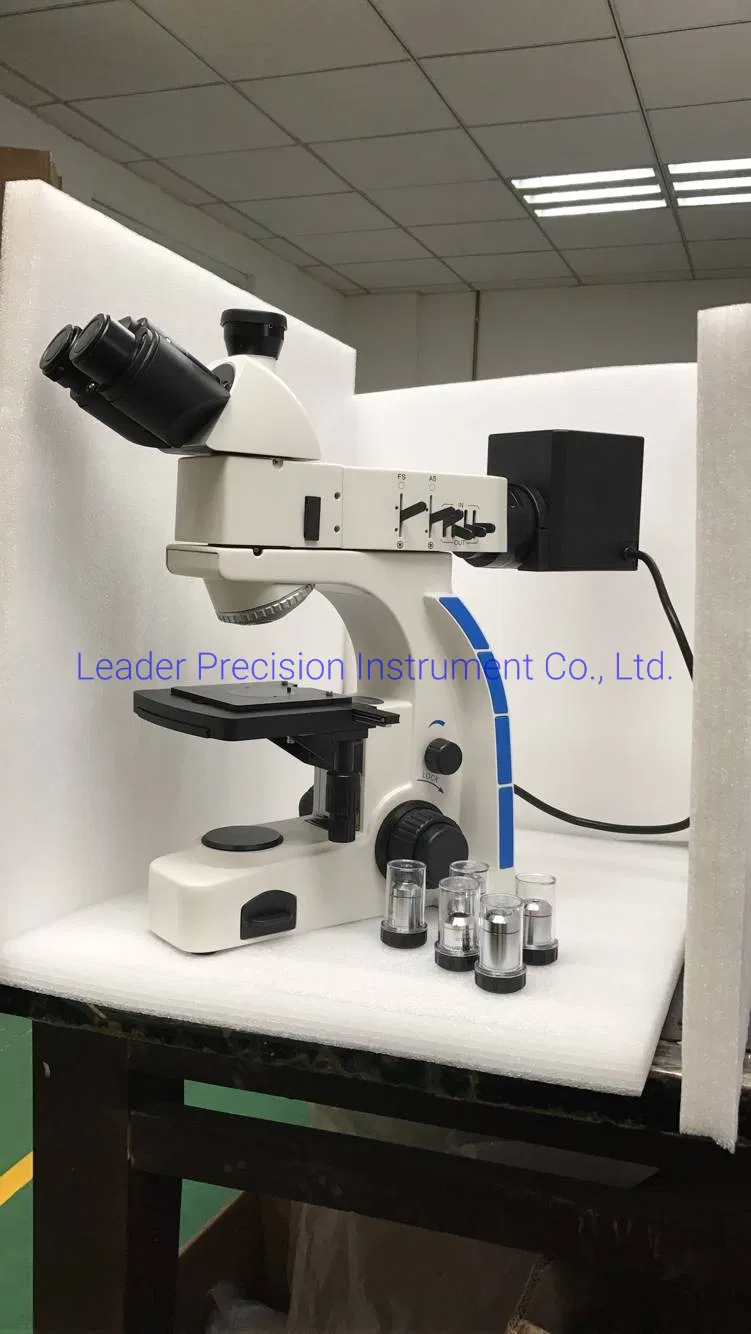

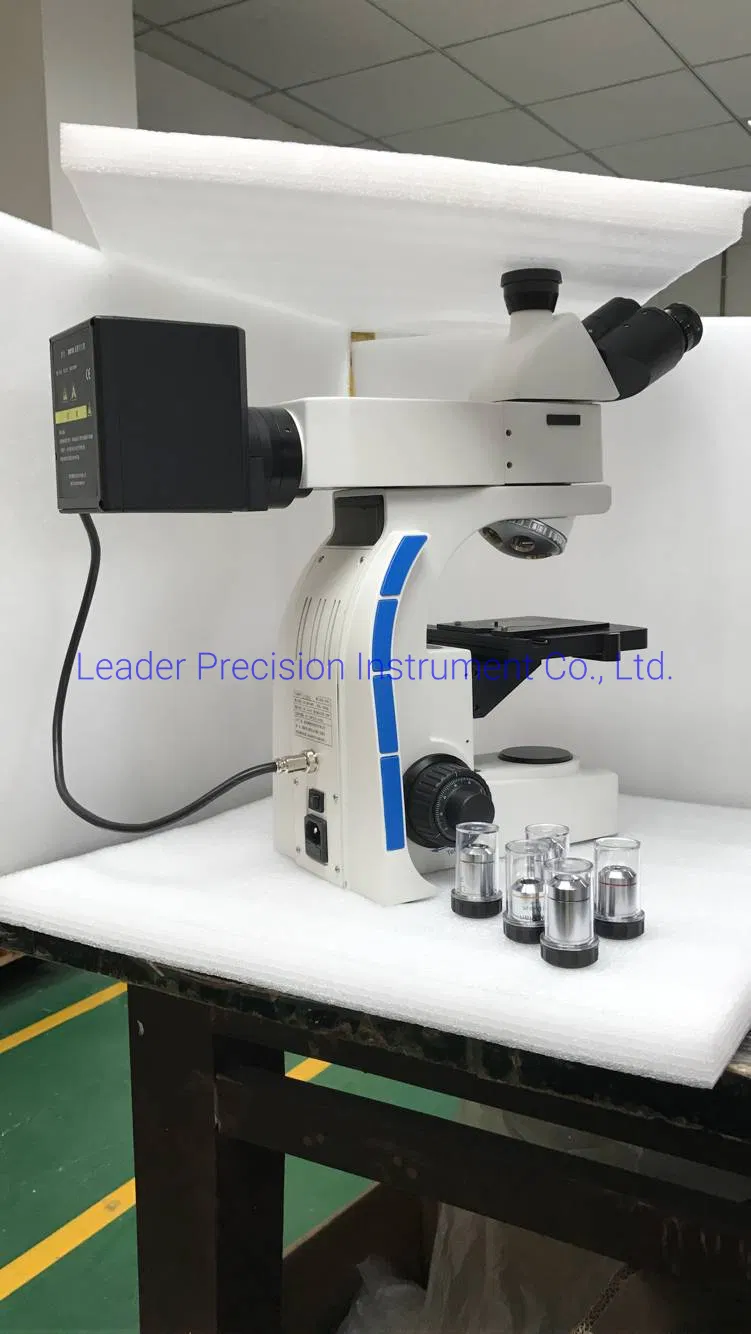

Below picture is triocular metallurgical microscope LM-302
Usage:
Upright Metallurgical Microscope LM-202 is used to observe and identify the structure of various metal and alloy, The metallurgical Microscope is widely used in institute and laboratory
Standard delivery:
Main unit: 1pcs
10x, 20x, 50x, 80x plan achromatic objective lens: 1pcs each
12V/50W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs
Polarizer and analyzer: 1pcs
Anti-dust cover: 1pcs
Optional accessories:
5x, 100x(oil) plan achromatic objective
Contour illumination (order no: LMC-202)
Usage:
Upright Metallurgical Microscope LM-202 is used to observe and identify the structure of various metal and alloy, The metallurgical Microscope is widely used in institute and laboratory
Standard delivery:
Main unit: 1pcs
10x, 20x, 50x, 80x plan achromatic objective lens: 1pcs each
12V/50W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs
Polarizer and analyzer: 1pcs
Anti-dust cover: 1pcs
Optional accessories:
5x, 100x(oil) plan achromatic objective
Contour illumination (order no: LMC-202)
| Eyepiece | WF10X/20 |
| Plan objective lens | 10x, 20x, 50x, 80x |
| Mechanical movable stage | Size: 156mm*138mm Travel: 76mm*54mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 30º. |
| Diopter adjustment | ±5 diopter |
| Surface illumination | 12V/50W halogen bulb |
| Contour illumination (option) | 6V/20W halogen bulb |
| Power supply | 110V/220V |
