Zoom Monocular Video Microscope Mzdh15100 Video Systems
1.Introduction:MZDH15100 series high-magnification erecting images zoom monocular video microscopes include MZDH15100BT(non- coaxial illumination) and MZDH15100BTC(coaxial illumination). Original design, characterized by exceed high-magnification, high-resolution, and can be doing video(or digital) ......
Send Inquiry
Product Description
1.Introduction:
MZDH15100 series high-magnification erecting images zoom monocular video microscopes include MZDH15100BT(non- coaxial illumination) and MZDH15100BTC(coaxial illumination). Original design, characterized by exceed high-magnification, high-resolution, and can be doing video(or digital) displaying, take pictures using digital camera and eyepieces observing at the same time. The image is erecting by binocular eyepieces observing. They fit for observing, checking-up and measure analysis microcosmic surface of various objects.
2.Main technology Specifications:
· Exceed high-magnification. Standard eyepieces observing total magnification is 15X~100X. 1.5X~10X zoom magnification body, WFH10X/22 plane eyepieces. The working distance is 82mm.
· It can be finished video displaying and eyepieces observing at the same time. The orientation of the observing image and the object is the same. The image is erecting. Choose to buy corresponding adapter, can connect CCD(CMOS) camera, digital camera or film camera.
· Long life, environmental protection type many kinds of wavelength(white, purple, red, blue, yellow, green) high lighteness LED coaxial illuminator(use in MZDH15100BTC)
· Binocular eyetubes inclined 45°
· The range of adjusting the diopter is ±6
· Interpupillary distance adjustment range 53~75mm
· The range of adjusting focus: Handwheel adjusting focus is 50mm. The height of round post is 242mm.
· The measurement to match between the support and the main body is Φ45mm.
· WFH10X/22,SWF15X,SWF20X,SWF30X four kinds magnification eyepieces and 0.5X,0.75X,1X,1.5X,2X,5X auxiliary objectives to be matched.
3.Photos:

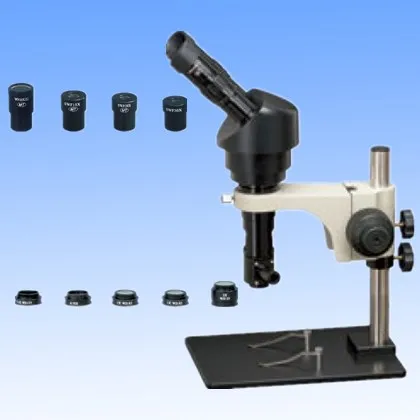

MZDH15100BC+SD11J-D

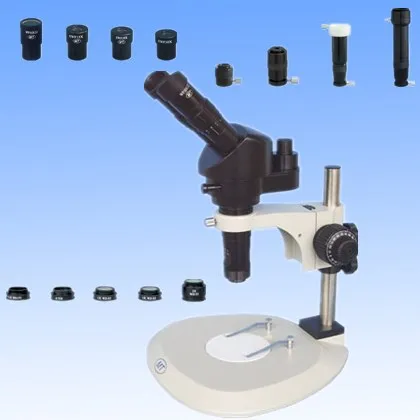

MZDH15100BCT+SD1
MZDH15100 series high-magnification erecting images zoom monocular video microscopes include MZDH15100BT(non- coaxial illumination) and MZDH15100BTC(coaxial illumination). Original design, characterized by exceed high-magnification, high-resolution, and can be doing video(or digital) displaying, take pictures using digital camera and eyepieces observing at the same time. The image is erecting by binocular eyepieces observing. They fit for observing, checking-up and measure analysis microcosmic surface of various objects.
2.Main technology Specifications:
· Exceed high-magnification. Standard eyepieces observing total magnification is 15X~100X. 1.5X~10X zoom magnification body, WFH10X/22 plane eyepieces. The working distance is 82mm.
· It can be finished video displaying and eyepieces observing at the same time. The orientation of the observing image and the object is the same. The image is erecting. Choose to buy corresponding adapter, can connect CCD(CMOS) camera, digital camera or film camera.
· Long life, environmental protection type many kinds of wavelength(white, purple, red, blue, yellow, green) high lighteness LED coaxial illuminator(use in MZDH15100BTC)
· Binocular eyetubes inclined 45°
· The range of adjusting the diopter is ±6
· Interpupillary distance adjustment range 53~75mm
· The range of adjusting focus: Handwheel adjusting focus is 50mm. The height of round post is 242mm.
· The measurement to match between the support and the main body is Φ45mm.
· WFH10X/22,SWF15X,SWF20X,SWF30X four kinds magnification eyepieces and 0.5X,0.75X,1X,1.5X,2X,5X auxiliary objectives to be matched.
3.Photos:
MZDH15100BC+SD11J-D
MZDH15100BCT+SD1
| MZDB1175BC | MZDB1175BTC | ||||||||
| Main body ZDH15100BT | * | ||||||||
| Main body ZDH15100BTC | * | ||||||||
| Eyepieces WFH10X/22 | ** | ** | |||||||
| Eye shields | ** | ** | |||||||
| Stand SD1J -D | * | ||||||||
| Stand SD11J-D | * | ||||||||
| LED illuminator MLC1000 | * | ||||||||
| Eyepieces | Auxiliary objective | Main body | With 0.5X Auxiliary objective | With 0.75X Auxiliary objective | With 1.5X Auxiliary objective | With 2X Auxiliary objective | With 5X Auxiliary objective | ||
| 10X/Φ22 | Total magnification | 15X~100X | 7.5X~50X | 11.25X~75X | 22.5X~150X | 30X~200X | 75X~500X | ||
| Field of view(mm) | Φ14.67~Φ2.2 | Φ29.33~Φ4.4 | Φ19.56~Φ2.93 | Φ9.78~Φ1.47 | Φ7.33~Φ1.1 | Φ2.93~Φ0.44 | |||
| 15X/Φ17 | Total magnification | 22.5X~150X | 11.25X~75X | 16.875X~112.5X | 33.75X~225X | 45X~300X | 112.5X~750X | ||
| Field of view(mm) | Φ11.33~Φ1.7 | Φ22.67~Φ3.4 | Φ15.11~Φ2.27 | Φ7.56~Φ1.13 | Φ5.67~Φ0.85 | Φ2.27~Φ0.34 | |||
| 20X/Φ14 | Total magnification | 30X~200X | 15X~100X | 22.5X~150X | 45X~300X | 60X~400X | 150X~1000X | ||
| Field of view(mm) | Φ9.33~Φ1.4 | Φ18.67~Φ2.8 | Φ12.44~Φ1.87 | Φ6.22~Φ0.93 | Φ4.67~Φ0.7 | Φ1.87~Φ0.28 | |||
| 30X/Φ9 | Total magnification | 45X~300X | 22.5X~150X | 33.75X~225X | 67.5X~450X | 90X~600X | 225X~1500X | ||
| Field of view(mm) | Φ6~Φ0.9 | Φ12~Φ1.8 | Φ8~Φ1.2 | Φ4~Φ0.6 | Φ3~Φ0.45 | Φ1.2~Φ0.18 | |||
| Working distance(mm) | 82 | 175 | 117 | 54 | 35 | 10.1 | |||
| Magnification range of zoom body 1.5X-10X | |||||||||
| Note: a. Total magnification=Eyepieces magnification × Zoom body magnification × Auxiliary objective magnification For example: Matching 10X eyepieces, on zoom body's scale locating 3, and choose 2X auxiliary objective Total magnification=10 × 3 × 2=60X b.Field of video = The diameter of field of eyepieces ÷ Zoom body magnification ÷ Auxiliary objective magnification For example: Matching 10X eyepieces, on zoom body's scale locating 3, and 1X auxiliary objective Field of video =22÷3÷1=Φ7.33mm | |||||||||
| Video display: | ||||
| Auxiliary objective | CCD adapter | |||
| 0.5X | 1X | |||
| Main body (Without auxiliary objective) | Total optical magnification | 0.75X~5X | Total optical magnification | 1.5X~10X |
| Field of video(mm) | 4.8X6.4~0.72X0.96 | Field of video(mm) | 2.4X3.2~0.36X0.48 | |
| Working distance(mm) | 82 | |||
| 0.75X | Total optical magnification | 0.5625X~3.75X | Total optical magnification | 1.125X~7.5X |
| Field of video(mm) | 6.4X8.53~0.96X1.28 | Field of video(mm) | 3.2X4.27~0.48X0.64 | |
| Working distance(mm) | 117 | |||
| 1.5X | Total optical magnification | 1.125X~7.5X | Total optical magnification | 2.25X~15X |
| Field of video(mm) | 3.2X4.27~0.48X0.64 | Field of video(mm) | 1.6X2.13~0.24X0.32 | |
| Working distance(mm) | 54 | |||
| 2X | Total optical magnification | 1.5X~10X | Total optical magnification | 3X~20X |
| Field of video(mm) | 2.4X3.2~0.36X0.48 | Field of video(mm) | 1.2X1.6~0.18X0.24 | |
| Working distance(mm) | 35 | |||
| 5X | Total optical magnification | 3.75X~25X | Total optical magnification | 7.5X~50X |
| Field of video(mm) | 0.96X1.28~0.144X0.192 | Field of video(mm) | 0.48X0.64~0.072X0.096 | |
| Working distance(mm) | 10.1 | |||
| Magnification range of zoom body 1.5X-10X | ||||
