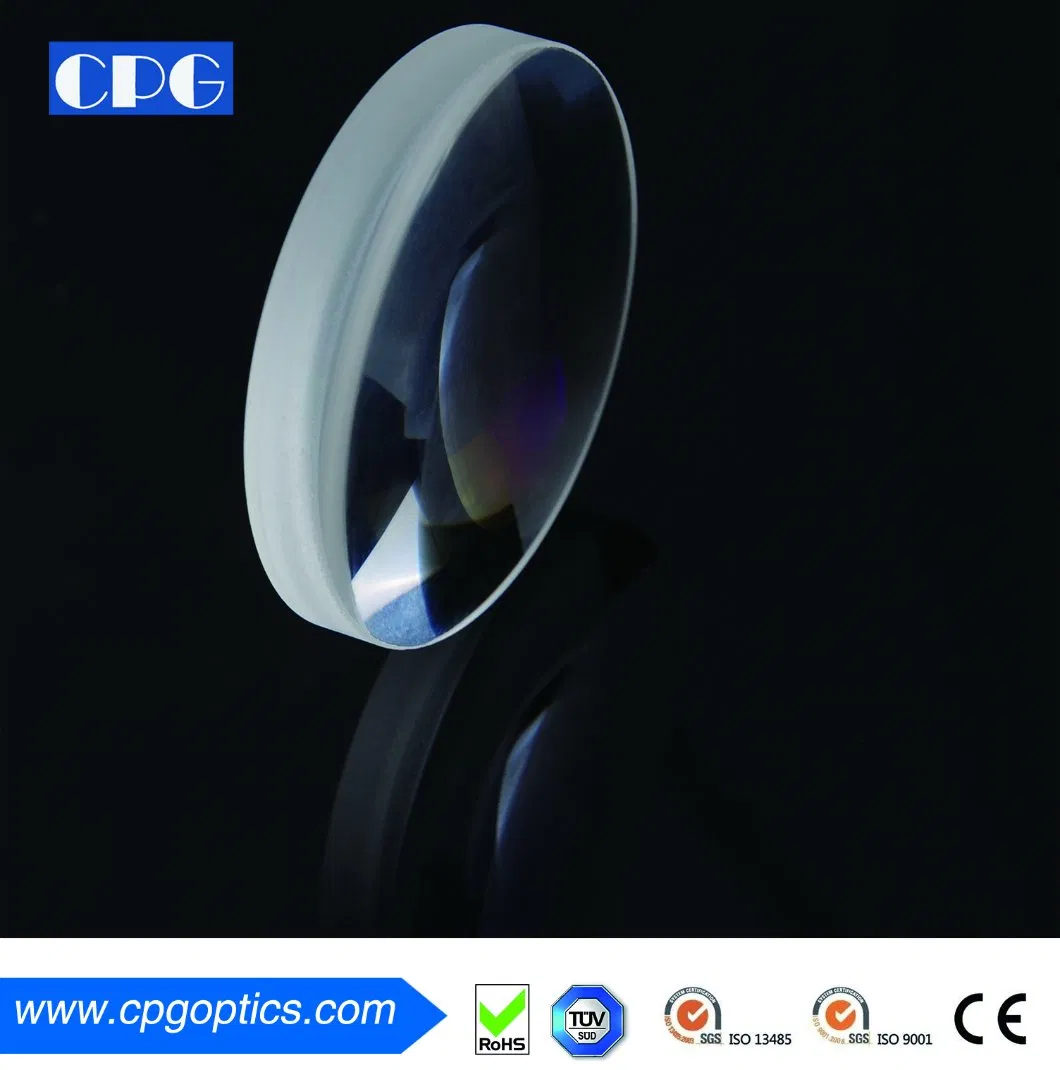

76.2mm Fused Silica ( AR ) Coated Optical Plcx Plano Convex Lens
Dia76.2mm Fused Silica Coated Optical PLCX Plano Convex Lens Specifications: Items Description Plano Convex LensMaterial:UVFS(JGS1)Diameter:76.2+0.0/-0.1mmEdge thickness:3.0+/-0.1mmFocal length:500mm+/-3%@632.8nmROC1:228.51mm,CXROC2:infinityFlatness:PV<1/[email protected] quality:20-10Centerness......
Send Inquiry
Product Description
Dia76.2mm Fused Silica Coated Optical PLCX Plano Convex Lens
Specifications:
| Items | Description | |
| Plano Convex Lens | Material: | UVFS(JGS1) |
| Diameter: | 76.2+0.0/-0.1mm | |
| Edge thickness: | 3.0+/-0.1mm | |
| Focal length: | 500mm+/-3%@632.8nm | |
| ROC1: | 228.51mm,CX | |
| ROC2: | infinity | |
| Flatness: | PV<1/[email protected] | |
| Surface quality: | 20-10 | |
| Centerness: | <3arcmin | |
| Clear aperture: | >90% | |
| Chamfer: | <0.25mmx45deg | |
| Coating: | AR coating,R<0.5%@405nm,AOI:0deg | |
| Standard: | MIL-PRF-13830B | |
