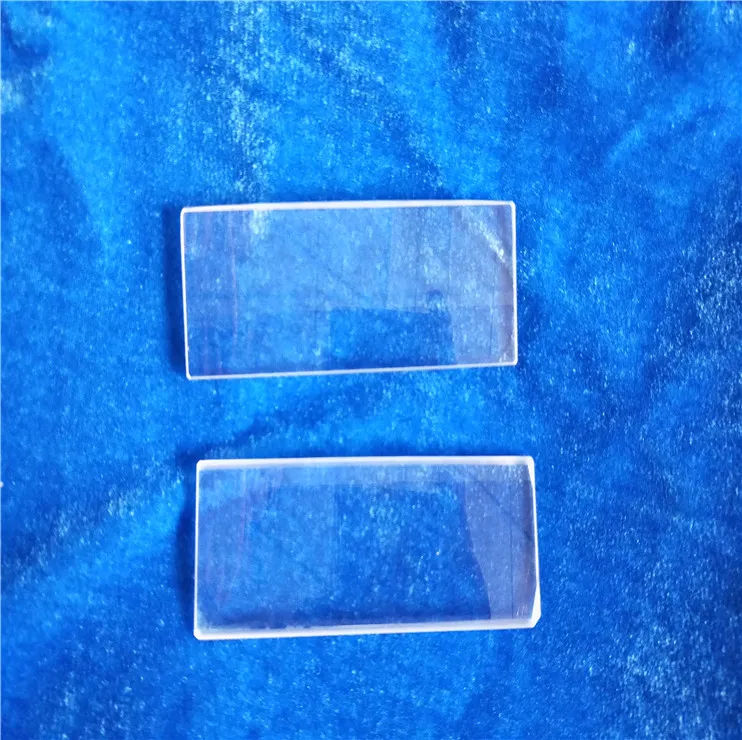

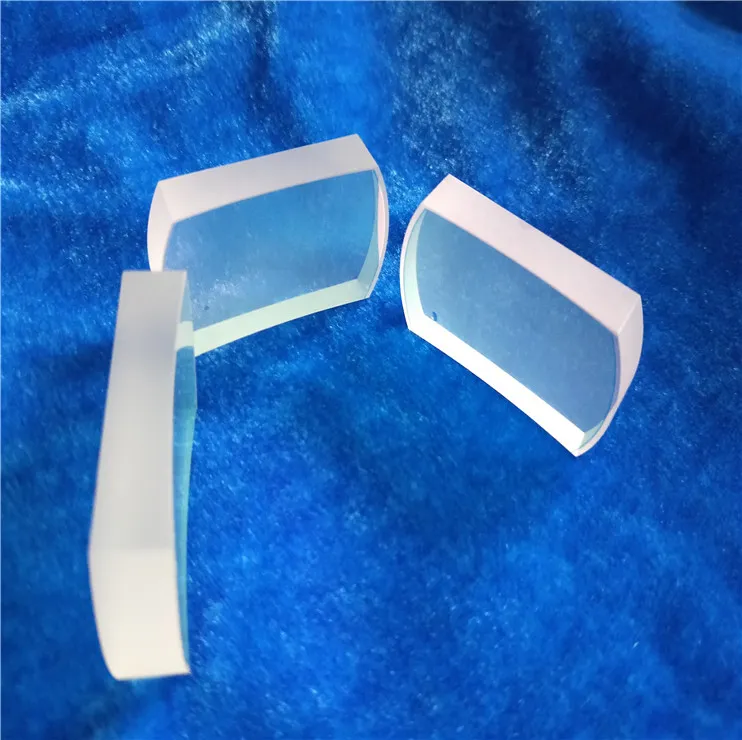

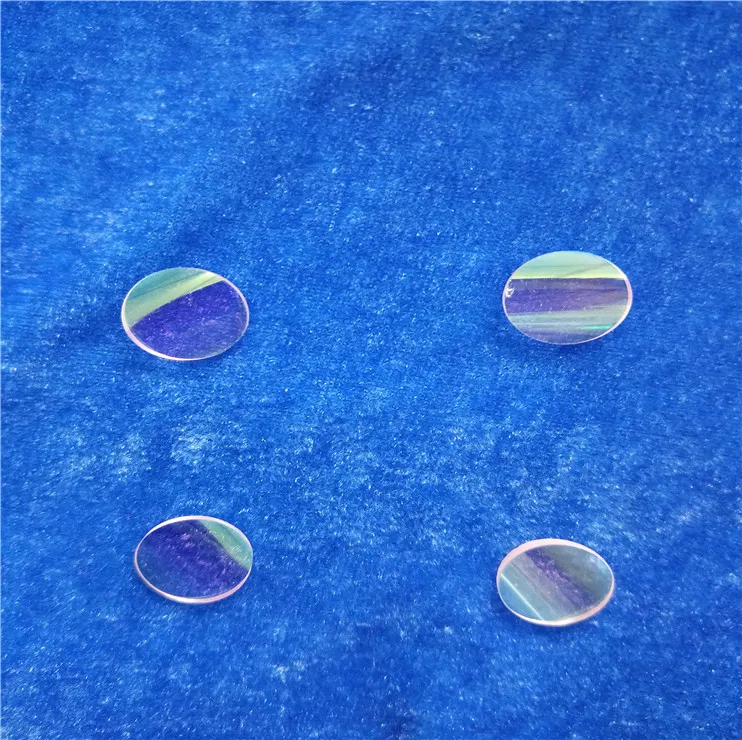

Ar Coating, Well Polished and Ground Optical Lens
Basic information: Typical material: BK7, Fused Silica Mass production leading time: 4-5weeksFactory: ISO9001 Samples: Free samples offered Service: O......
Send Inquiry
Product Description
Basic information:
Typical material: BK7, Fused Silica Mass production leading time: 4-5weeks
Application:
----WSS
----Telecommunication System
----Laser Measurement System
----Scan System
Capability
Typical material: BK7, Fused Silica Mass production leading time: 4-5weeks
Factory: ISO9001 Samples: Free samples offered
Service: OEM & ODM Package: As request
experience: 18 years Specification: As request
Port: Fuzhou Port Origin: China
Service: OEM & ODM Package: As request
experience: 18 years Specification: As request
Port: Fuzhou Port Origin: China
Application:
----WSS
----Telecommunication System
----Laser Measurement System
----Scan System
Capability
| Attribute | Commercial | High Precision |
| Typical Material | BK7 | N-LAK9+N-LAF34,BK7+ZF2 |
| Typical Dimension X*Y (mm) | 10*10 | 10 * 30 |
| Diameter Tolerance (mm) | +0.00/-0.2 | +0.00/-0.2 |
| Focus Length Tolerance(mm) | Typical +/-2%@633nm | Typical +/-2%@633nm |
| Centration ( arc min) | Typical < 3 | Typical < 3 |
| Surface Figure X (per [email protected]) | 1 /2 | 1/4 |
| Surface Figure Y(per [email protected]) | 2λ | λ |
| Surface Quality (scatch/dig) | 60-40 | 10-5 |
| Bevel (face width * 45° mm) | 0.2--0.5 | 0.05-0.2 |
| coating | wavelength:AR: R≤0.25% per surface broadband AR R≤0.5% per surface |
