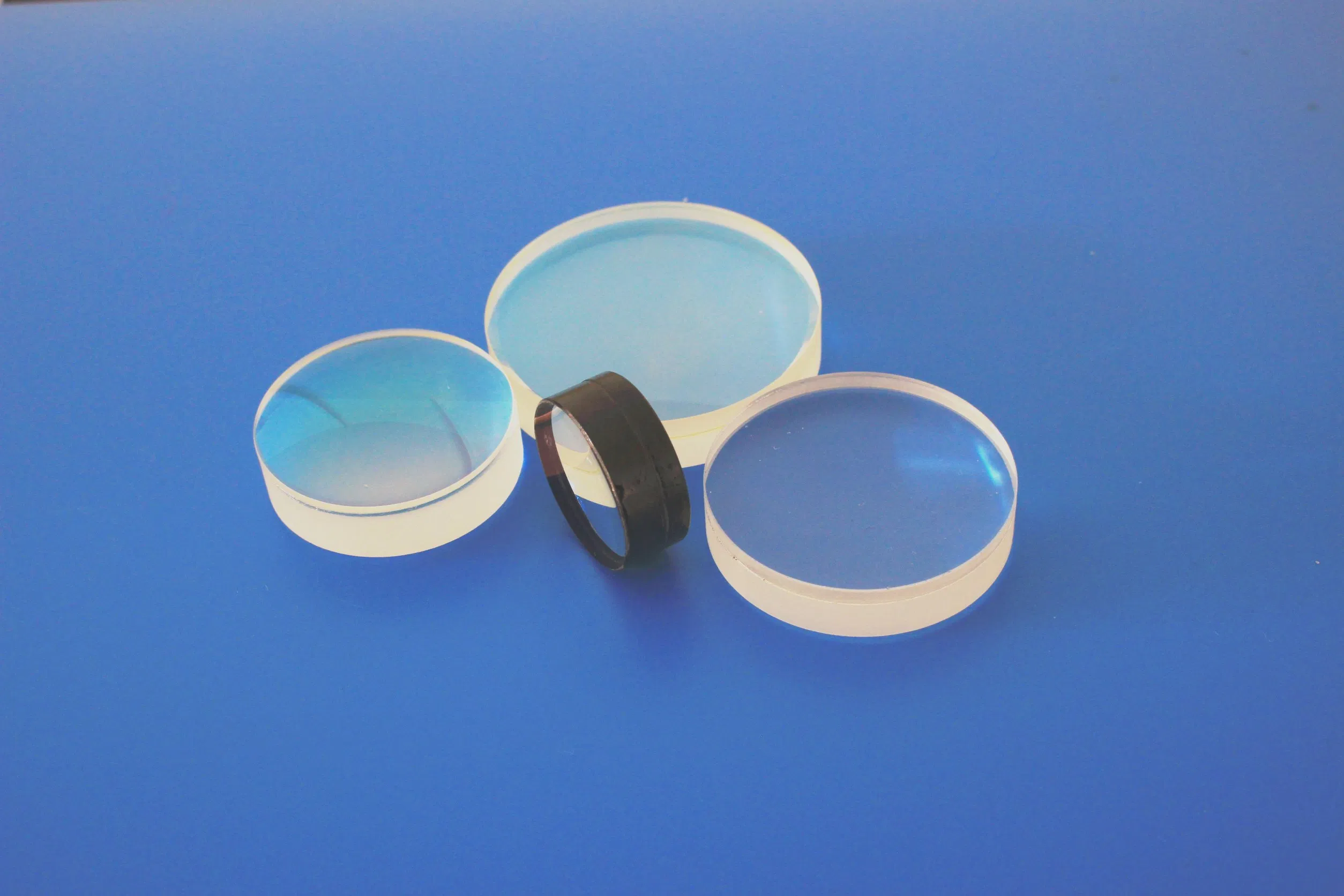

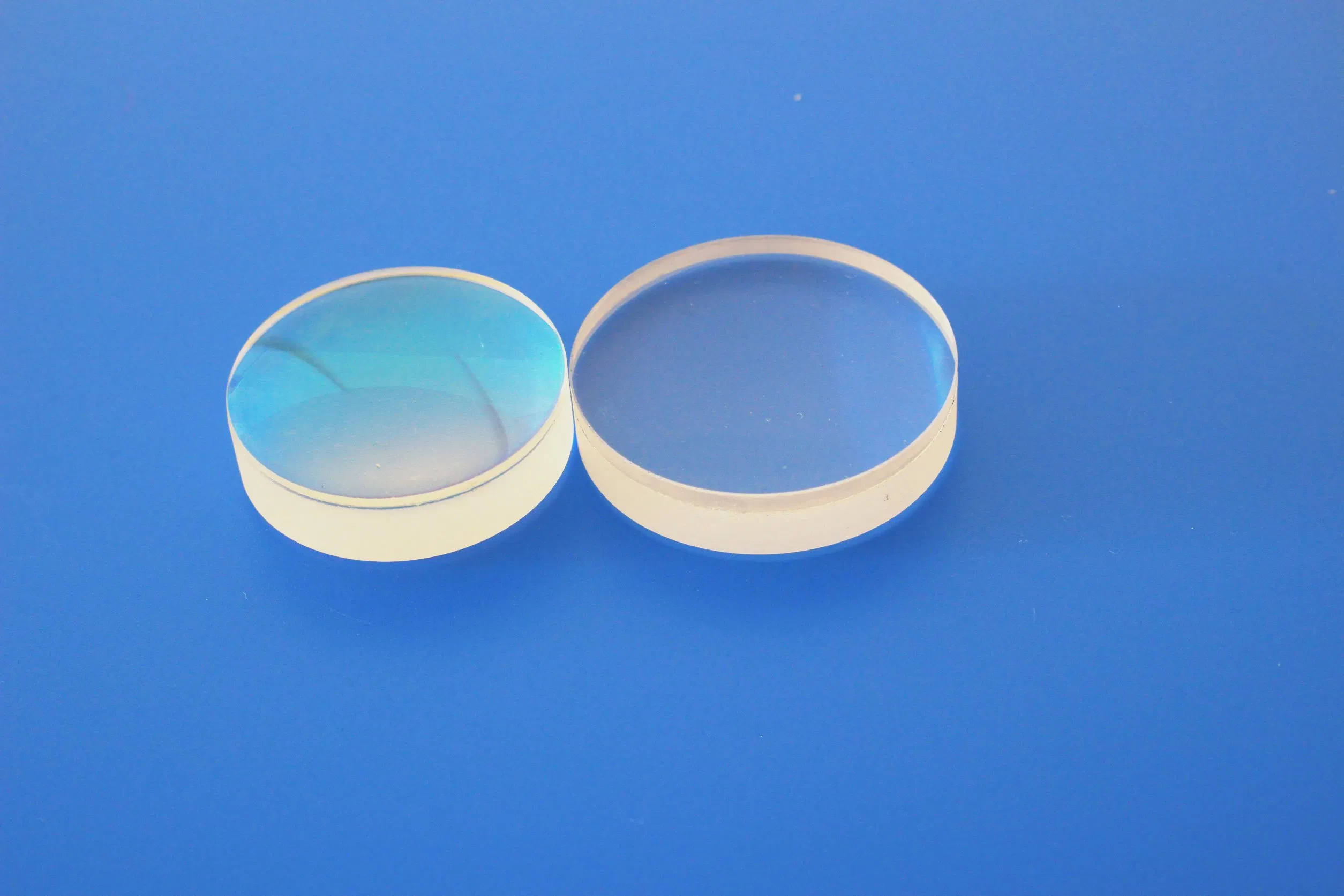

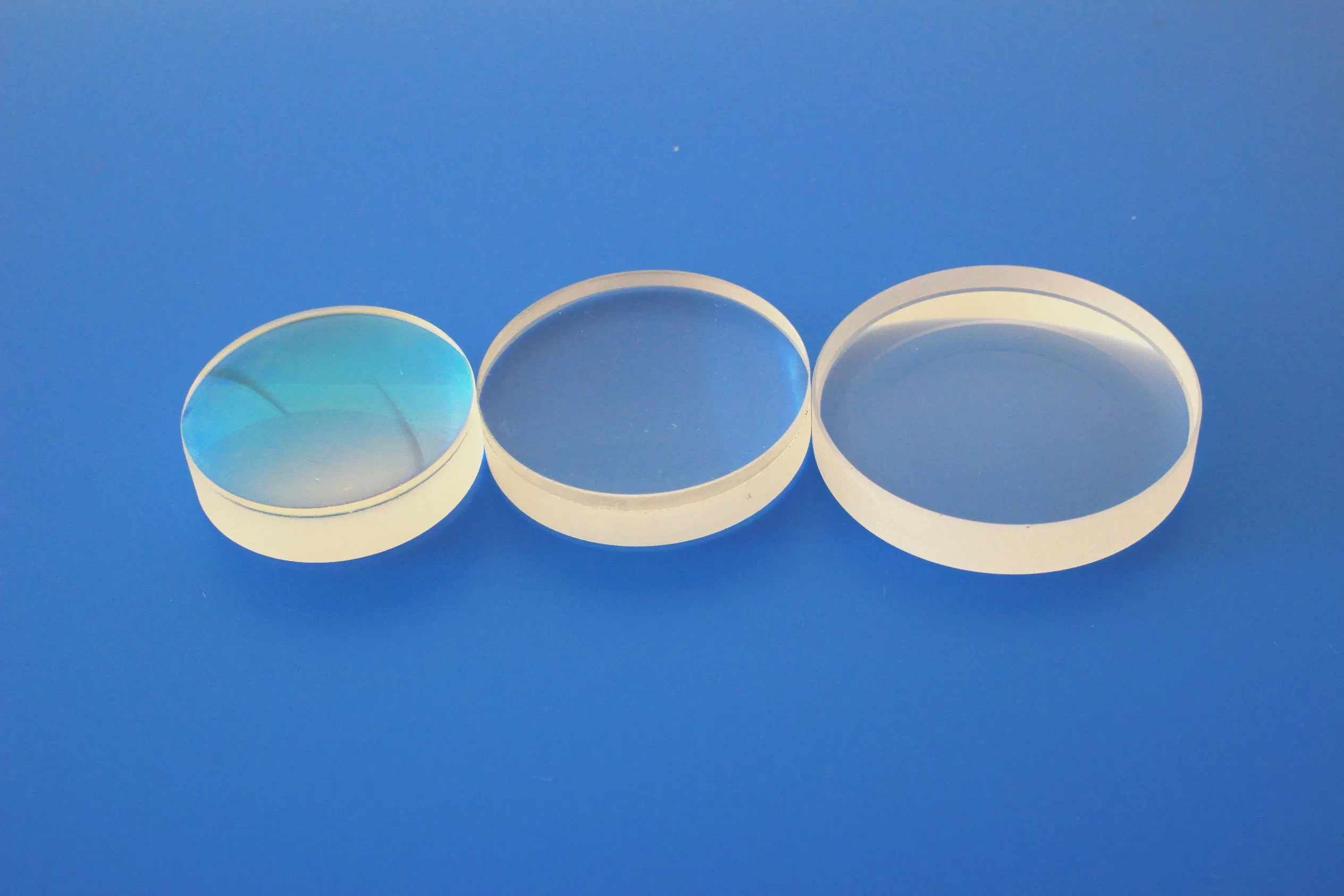

Custmized Optical Glass Bi Convex Lens
Double convex lenses have two outward curved surfaces, normally the two surfaces have same radius of curvature, with finely polished. Bi convex lenses have positive focal length, so they are used for 1:1 imaging and in multi-element systems. Bi convex lens is a good choice when the object and image ......
Send Inquiry
Product Description
Double convex lenses have two outward curved surfaces, normally the two surfaces have same radius of curvature, with finely polished. Bi convex lenses have positive focal length, so they are used for 1:1 imaging and in multi-element systems. Bi convex lens is a good choice when the object and image are at equal or near equal distance from the lens. Bi convex lens spherical aberration is larger than that of plano convex lens, so focal length may not gather at one point. We manufacture bi convex lenses with optical flint glasses, crown glasses, UV grade fused silica glass and infrared glasses. AR coating is applied to the surfaces of bi convex lenses for enhancing transmission.
Custom Made capabilities:
Our factory introduction:
Nanjing Shuncheng Optical Components Co.,Ltd. is a professional manufacturer of precision optical spherical lenses, cylindrical lenses, optical plates/windows and optical filters for power laser applications, opto-mechanics, electro-optical and optical instruments. Our factory was founded in the year 1998, with 65 workers.. We are located in Nanjing city, about 200km from Shanghai. Most of our workers are rich-experienced workers, and they have skilled technology in production, research and inspection. We have polishing machines, grinding machines, centering machines, coating machines and cutting machines, as well as advanced testing machines.
Our Products Range:
Our workshop for production and inspection:
Our testing:
FAQ
Q1: Do you provide free samples ?
Yes, we provide free samples if we have the items in stock. If we do not have the items in stock, we need to make, the tooling cost will be refunded you when you order the items in large quantity in the future.
Q2: What is the production lead time for samples and bulk order ?
Normally, we are able to send samples in 2 week. For large quantity order like 1000pcs or 2000pcs, we are able to send in 4-5 weeks.
Q3: How will you send the goods ?
We have been working with express courier DHL and UPS for more than 10 years, we send optics by DHL or UPS.
Custom Made capabilities:
| Material | N-BK7, UV fused silica, JGS1,N-SF11, Silicon, Germanium, etc. |
| Diameter available | 1.5mm to 700mm |
| Tolerance | +/-0.03mm |
| Thickness tolerance | +/-0.03mm |
| Surface quality | 20/10 or better |
| Surface accuracy | Lambda/4 or better |
| Centering | 1 arc min |
| Chamfer | protective or do as per requested |
| Coating | anti reflective coating for visible, UV, infrared wavelengths |
Our factory introduction:
Nanjing Shuncheng Optical Components Co.,Ltd. is a professional manufacturer of precision optical spherical lenses, cylindrical lenses, optical plates/windows and optical filters for power laser applications, opto-mechanics, electro-optical and optical instruments. Our factory was founded in the year 1998, with 65 workers.. We are located in Nanjing city, about 200km from Shanghai. Most of our workers are rich-experienced workers, and they have skilled technology in production, research and inspection. We have polishing machines, grinding machines, centering machines, coating machines and cutting machines, as well as advanced testing machines.

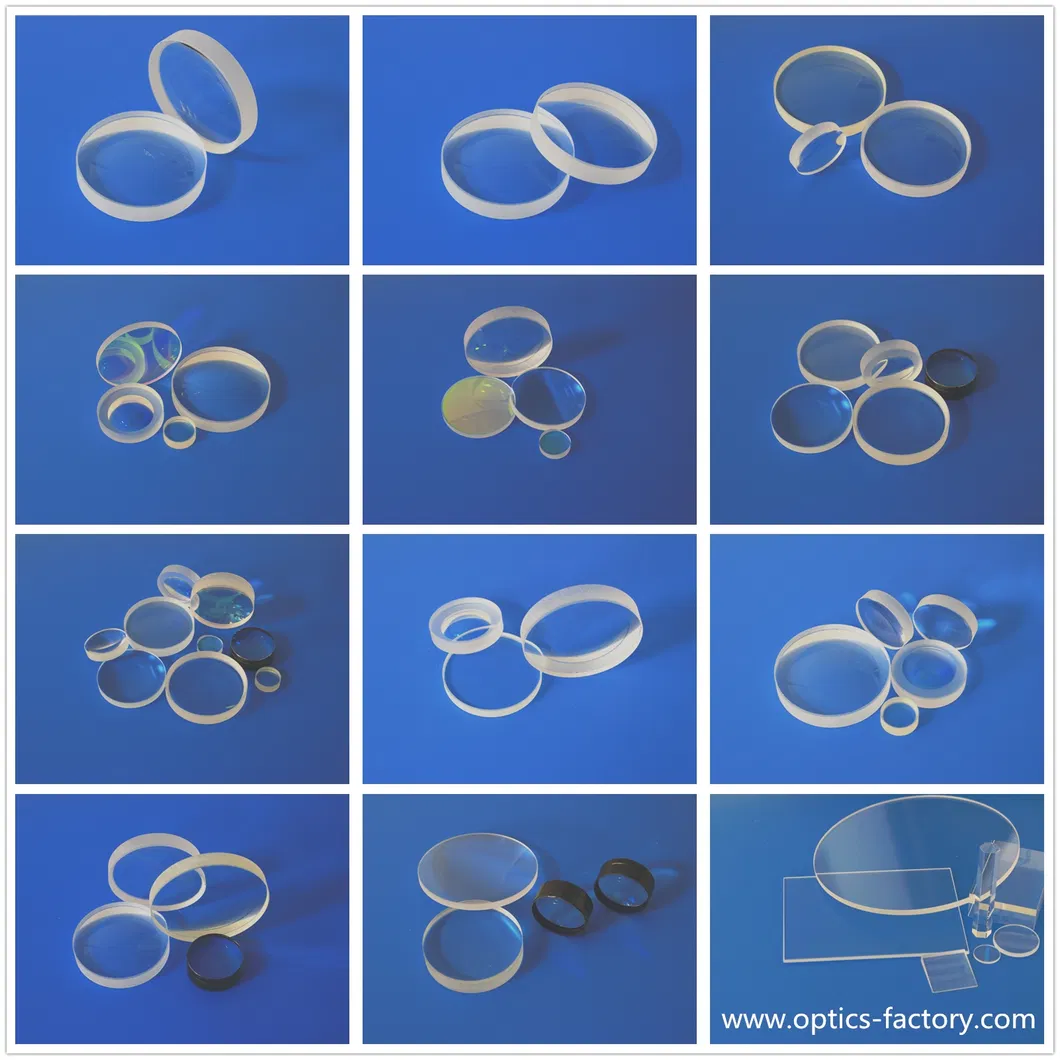

Our Products Range:
- Spherical lens, including plano convex lens, plano concave lens, biconvex lens, biconcave lens,achromatic lens, ball lens, drum lens, etc.
- Cylindrical lens,including plano convex cylindrical lens, plano concave cylindrical lens, biconvex cylindrical lens, biconcave cylindrical lens, cemented cylindrical lens, cylinder lens, cylinder rod lens.
- Optical window and plate. Round window, square window, rectangular window, wedge window, optical filter window, window with hole.
- Thin film: AR coating, reflective coating for mirror, band pass filter, beam splitter and density filter.

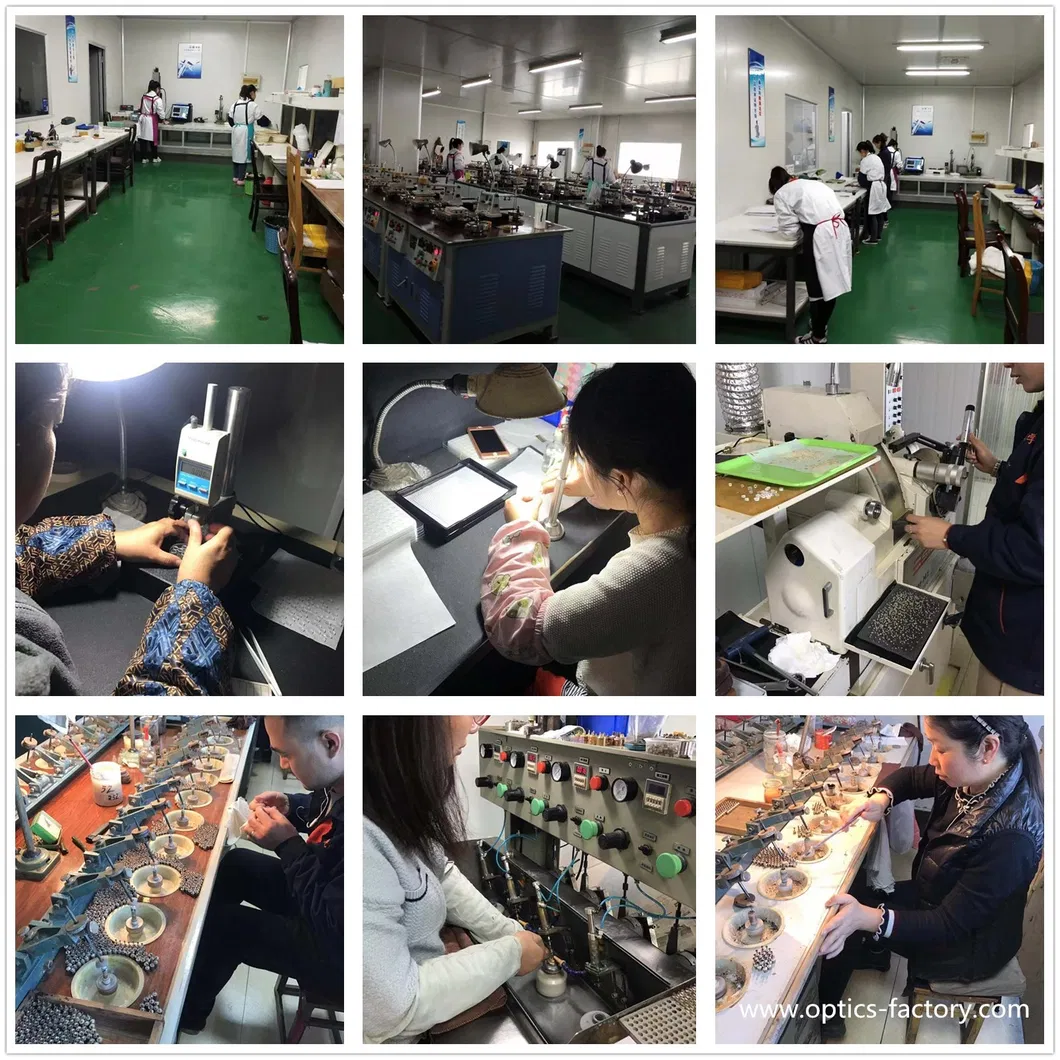

Our workshop for production and inspection:

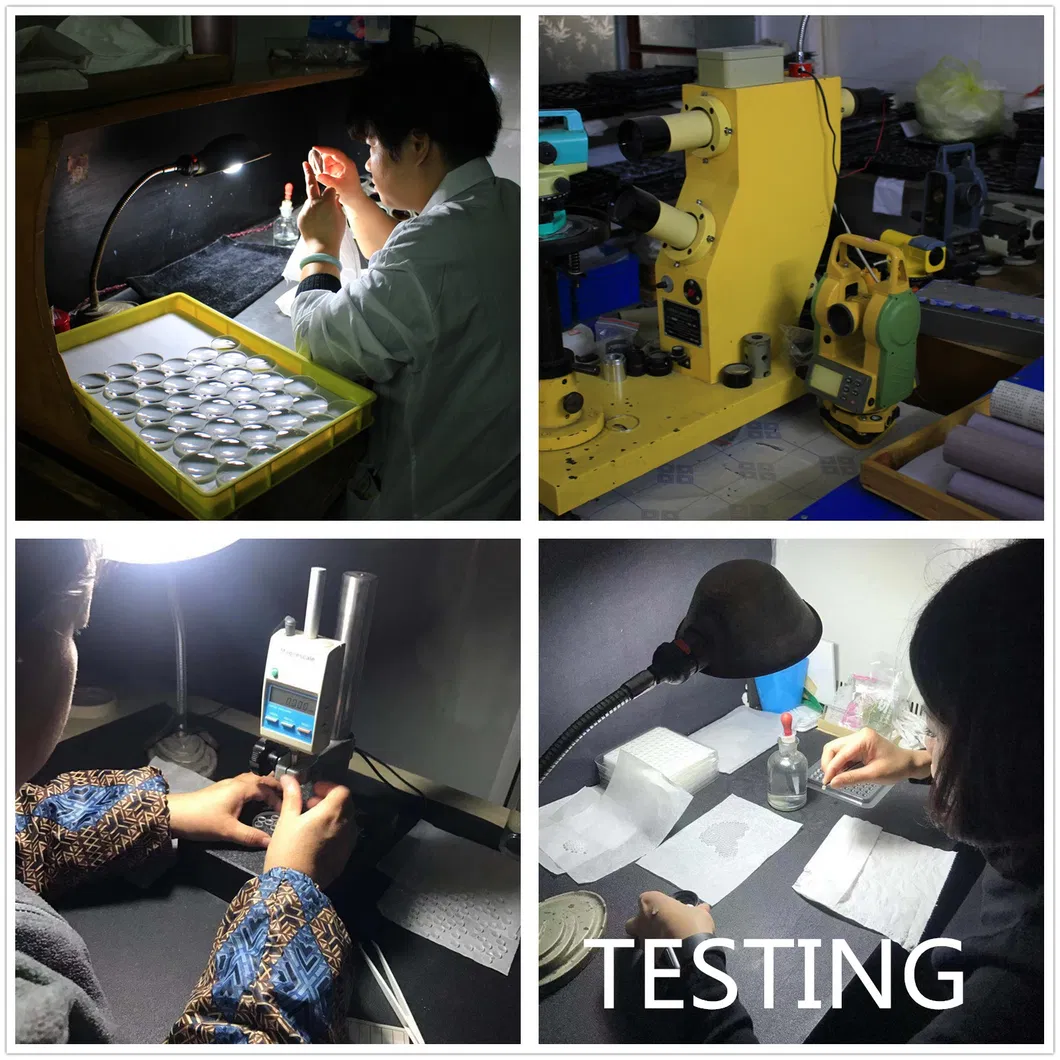

Our testing:
FAQ
Q1: Do you provide free samples ?
Yes, we provide free samples if we have the items in stock. If we do not have the items in stock, we need to make, the tooling cost will be refunded you when you order the items in large quantity in the future.
Q2: What is the production lead time for samples and bulk order ?
Normally, we are able to send samples in 2 week. For large quantity order like 1000pcs or 2000pcs, we are able to send in 4-5 weeks.
Q3: How will you send the goods ?
We have been working with express courier DHL and UPS for more than 10 years, we send optics by DHL or UPS.
