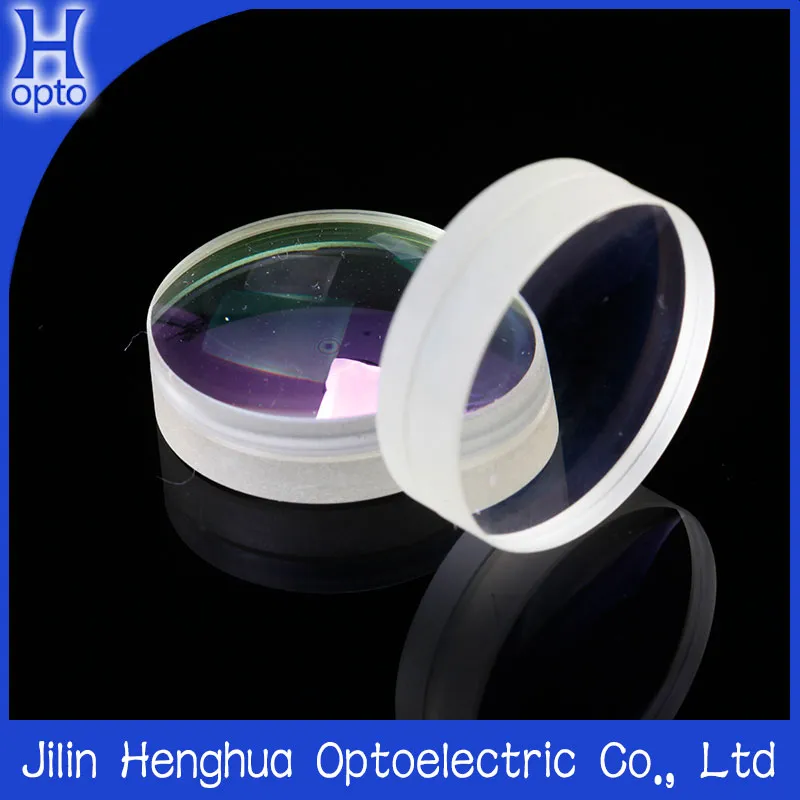

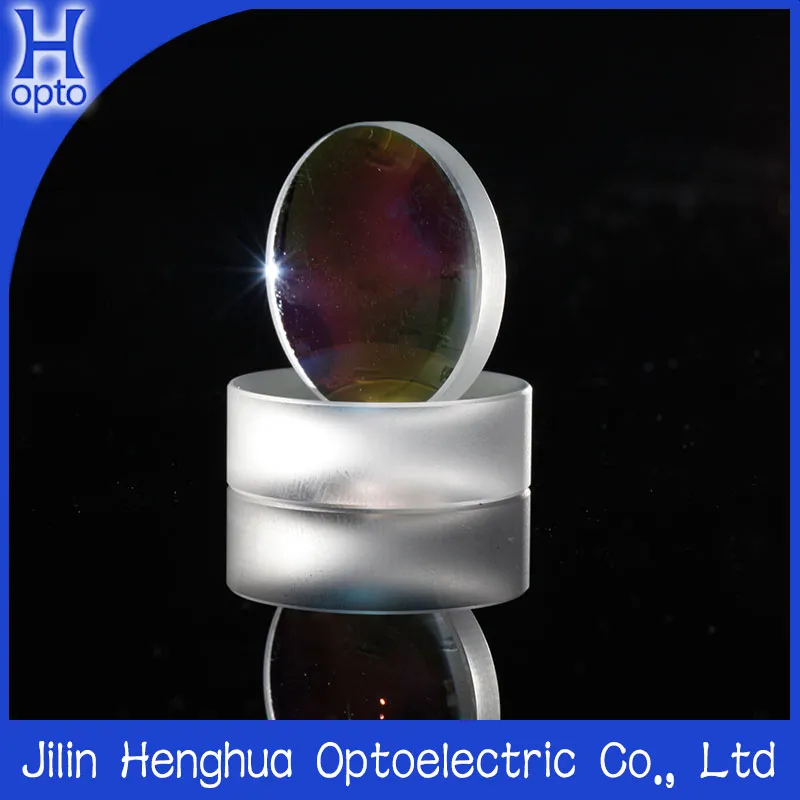

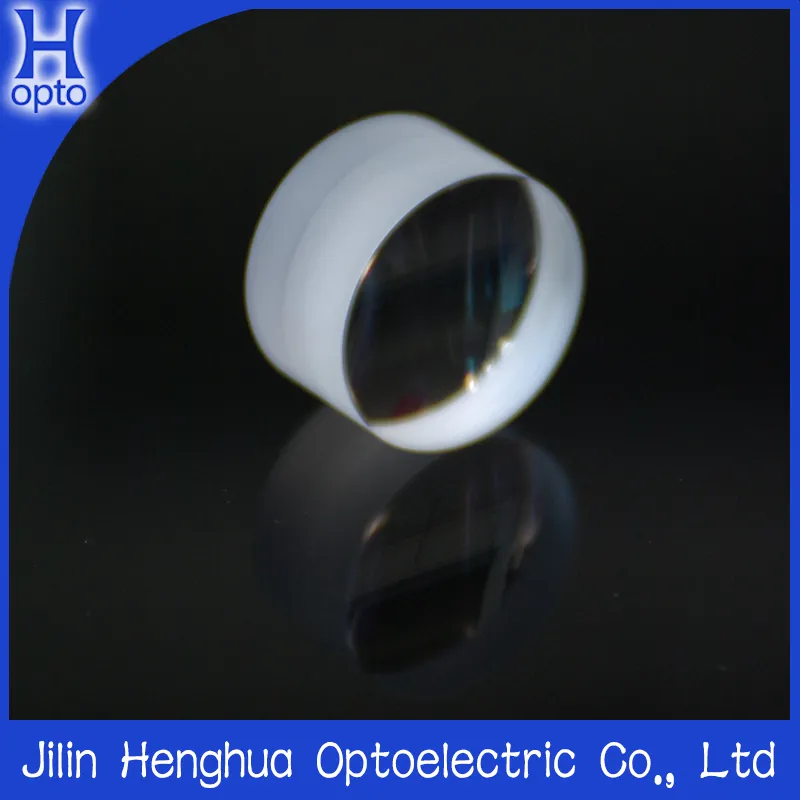

Custom-Made Glass Optical Ar Coated Doublet Glued 20mm Achromatic Lens for OEM
Plano-convex lenses are useful for a wide range of applications. These lenses are manufactured from BK7A grade A (or customer design) optical glass and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section. To order an anti-reflection coated lens simply appe......
Send Inquiry
Product Description
Plano-convex lenses are useful for a wide range of applications. These lenses are manufactured from BK7A grade A (or customer design) optical glass and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section. To order an anti-reflection coated lens simply append the wavelength in nanometers to the product number. These lenses may also be used as mirror blanks if a convex surface mirror is required. When used to focus a collimated beam, the light should be incident on the curved surface of the lens. These plano-convex lenses may be combined with other lenses to form compex imaging systems.
Parameter:
Item PLCX, PLCC, BICX, BIXX, CXCC, DOUBLET
Material BK7, Fused silica, K9, Ge, Si, etc.
Design Wavelength Customer design
Dimension Tolerance +0/-0.05mm
Thickness Tolerance +/-0.1mm
Surface Quality 40-20 or better
Surface Figure Sph surface: Lambda/4 or better @632.8nm
Center Error ETV better than 0.01mm
Clear Aperture 90% of diameter
Bevel Protective bevel
Coating BBAR or customer design
PCX :
These uncoated plano-convex lenses are ideal for a multitude of optics and photonics applications. Ideal for collimation and focusing applications utilizing monochromatic illumination.
DCX :
Ideal for image relay, and for imaging of objects at close conjugates
PCC:
Ideal for beam expansion, light projection, and expanding the focal length of an optical system.
DCC:
Ideal for beam expansion, light projection, and expanding the focal length of an optical system. Also known as biconcave lenses

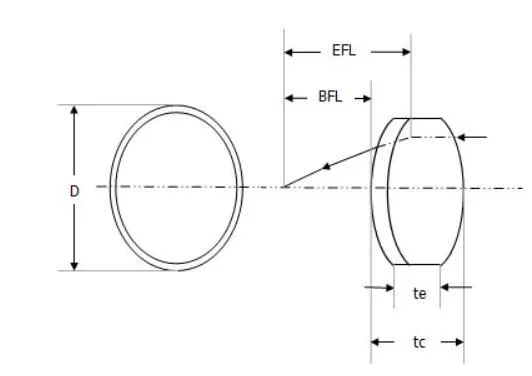

Part No. | D (mm) | EFL(mm) @ 633nm | BFL(mm) @ 633nm | tc (mm) | te (mm) |
Materials |
PDA-03-4.5 | 3.0 | 4.5 | 2.93 | 3.0 | 2.5 | BaF10-SF5 |
PDA-03-6.0 | 3.0 | 6.0 | 4.33 | 3.0 | 2.7 | BaF10-SF5 |
PDA-05-7.5 | 5.0 | 7.5 | 5.01 | 4.7 | 4.0 | BaF10-SF5 |
PDA-05-10 | 5.0 | 10.0 | 8.56 | 2.7 | 2.2 | BaF10-SF5 |
PDA-05-15 | 5.0 | 15.0 | 13.64 | 2.5 | 2.2 | BaF10-SF5 |
PDA-05-20 | 5.0 | 20.0 | 18.6 | 2.6 | 2.4 | BaF10-SF5 |
PDA-6.35-10 | 6.35 | 10.0 | 7.83 | 4.1 | 3.2 | BaF10-SF5 |
PDA-6.35-15 | 6.35 | 15.0 | 12.75 | 3.7 | 3.0 | BaF10-SF5 |
PDA-6.35-20 | 6.35 | 20.0 | 18.23 | 3.7 | 3.1 | BaF10-SF5 |
PDA-12.7-15 | 12.7 | 15.0 | 10.7 | 7.8 | 5.3 | BaF10-SF10 |
PDA-12.7-20 | 12.7 | 20.0 | 16.4 | 6.3 | 4.6 | BaF10-SF10 |
PDA-12.7-25 | 12.7 | 25.0 | 21.4 | 6.3 | 4.9 | BaF10-SF10 |
PDA-12.7-50 | 12.7 | 50.0 | 47.6 | 5.0 | 4.0 | BaF10-SF5 |
PDA-12.7-75 | 12.7 | 75.0 | 72.3 | 4.6 | 4.0 | BaF10-SF5 |
PDA-12.7-100 | 12.7 | 100.0 | 97.9 | 4.5 | 4.0 | BaF10-SF5 |
PDA-19.1-25 | 19.1 | 25.0 | 20.4 | 9.3 | 6.7 | BaF10-SF10 |
PDA-19.1-30 | 19.1 | 30.0 | 24.8 | 9.0 | 6.5 | BaF10-SF10 |
PDA-19.1-40 | 19.1 | 40.0 | 34.7 | 7.6 | 6.0 | BaF10-SF10 |
PDA-19.1-50 | 19.1 | 50.0 | 44.9 | 7.3 | 6.0 | BK7-SF5 |
PDA-19.1-60 | 19.1 | 60.0 | 56.6 | 5.5 | 5.0 | BK7-SF5 |
PDA-19.1-75 | 19.1 | 75.0 | 72.0 | 5.3 | 4.5 | BK7-SF5 |
PDA-19.1-125 | 19.1 | 125.0 | 121.6 | 5.0 | 4.5 | BK7-SF5 |
PDA-25.4-30 | 25.4 | 30.0 | 22.2 | 14.0 | 9.3 | BaF10-SF10 |
PDA-25.4-40 | 25.4 | 40.0 | 33.2 | 12.0 | 8.5 | BaF10-SF10 |
PDA-25.4-50 | 25.4 | 50.0 | 43.5 | 11.5 | 8.7 | BK7-SF5 |
PDA-25.4-60 | 25.4 | 60.0 | 52.3 | 11.4 | 8.8 | BK7-SF5 |
PDA-25.4-75 | 25.4 | 75.0 | 70.3 | 9.5 | 6.9 | BK7-SF5 |
PDA-25.4-100 | 25.4 | 100.0 | 95.9 | 8.5 | 6.6 | BK7-SF5 |
PDA-25.4-125 | 25.4 | 125.0 | 120.8 | 8.4 | 6.9 | BK7-SF5 |
PDA-25.4-150 | 25.4 | 150.0 | 146.1 | 7.9 | 6.6 | BK7-SF5 |
PDA-25.4-175 | 25.4 | 175.0 | 170.8 | 9.0 | 7.9 | BK7-SF5 |
PDA-25.4-200 | 25.4 | 200.0 | 194.1 | 9.0 | 8.0 | BK7-SF5 |
PDA-25.4-250 | 25.4 | 250.0 | 246.6 | 7.5 | 6.7 | BK7-SF5 |
PDA-25.4-300 | 25.4 | 300.0 | 297.7 | 6.0 | 5.4 | BK7-SF5 |
PDA-25.4-500 | 25.4 | 500.0 | 497.5 | 6.0 | 5.5 | BK7-SF5 |

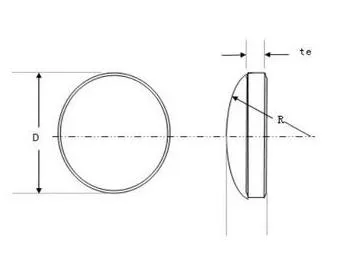

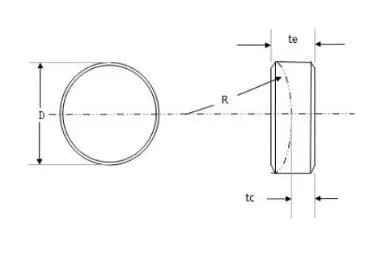

| Part No. | D (mm) | f(mm) @ 250 nm | R (mm) | Tc (mm) |
| PCC-12.7U -050 | 12.7 | -98.3 | 50 | 5.0 |
| PCC-12.7U -075 | 12.7 | -147.5 | 75 | 4.0 |
| PCC-12.7U -100 | 12.7 | -196.7 | 100 | 3.5 |
| PCC-12.7U -150 | 12.7 | -295.0 | 150 | 3.0 |
| PCC-12.7U -200 | 12.7 | -393.3 | 200 | 3.0 |
| PCC-12.7U -250 | 12.7 | -491.6 | 250 | 2.5 |
| PCC-12.7U -300 | 12.7 | -590.0 | 300 | 2.5 |
| PCC-12.7U -400 | 12.7 | -786.6 | 400 | 2.5 |
| PCC-12.7U -500 | 12.7 | -983.3 | 500 | 2.5 |
| PCC-12.7U -750 | 12.7 | -1474.9 | 750 | |
| PCC-12.7U -1000 | 12.7 | -1966.6 | 1000 | 2.5 |
| PCC-19.1U -050 | 12.7 | -1966.6 | 50 | 2.5 |
| PCC-19.1U -075 | 12.7 | -98.3 | 75 | 2.5 |
| PCC-19.1U -100 | 19.1 | -147.5 | 100 | 6.0 |
| PCC-19.1U -150 | 19.1 | -196.7 | 150 | 4.0 |
| PCC-19.1U -200 | 19.1 | -295.0 | 200 | 4.0 |
| PCC-19.1U -250 | 19.1 | -393.3 | 250 | 4.0 |
| PCC-19.1U -300 | 19.1 | -491.6 | 300 | 4.0 |
| PCC-19.1U -400 | 19.1 | -590.0 | 400 | 4.0 |
| PCC-19.1U -500 | 19.1 | -786.6 | 500 | 4.0 |
| PCC-19.1U -750 | 19.1 | -1474.9 | 750 | 4.0 |
| PCC-19.1U -1000 | 19.1 | -1966.6 | 1000 | 4.0 |
| PCC-25.4U-050 | 25.4 | -98.3 | 50 | 4.0 |
| PCC-25.4U-075 | 25.4 | -147.5 | 75 | 4.0 |
| PCC-25.4U-100 | 25.4 | -196.7 | 100 | 4.0 |
| PCC-25.4U-150 | 25.4 | -295.0 | 150 | 4.0 |
| PCC-25.4U-200 | 25.4 | -393.3 | 200 | 5.3 |
| PCC-25.4U-250 | 25.4 | -491.6 | 250 | 4.0 |
| PCC-25.4U-400 | 25.4 | -786.6 | 400 | 4.0 |
| PCC-25.4U -500 | 25.4 | -983.3 | 500 | 4.0 |
| PCC-25.4U -750 | 25.4 | -1474.9 | 750 | 4.0 |
| PCC-25.4U -1000 | 25.4 | -1966.6 | 1000 | 4.0 |
| PCC-25.4U -2000 | 25.4 | -3933.1 | 2000 | 4.0 |
| PCC-25.4U -3000 | 25.4 | -5899.7 | 3000 | 4.0 |
| PCC-25.4U -4000 | 25.4 | -7866.3 | 4000 | 4.0 |
| PCC-25.4U -5000 | 25.4 | -9832.8 | 5000 | 4.0 |
| PCC-25.4U -7500 | 25.4 | -14749.3 | 7500 | 4.0 |
| PCC-25.4U -10000 | 25.4 | -19665.7 | 10000 | 4.0 |
| PCC-38.1U-050 | 38.1 | -98.3 | 50 | 4.0 |
| PCC-38.1U-075 | 38.1 | -147.5 | 75 | 4.0 |
| PCC-38.1U-100 | 38.1 | -196.7 | 100 | 4.0 |
| PCC-38.1U-150 | 38.1 | -295.0 | 150 | 4.0 |
| PCC-38.1U-200 | 38.1 | -393.3 | 200 | 4.0 |
| PCC-38.1U-250 | 38.1 | -491.6 | 250 | 4.0 |
| PCC-38.1U-300 | 38.1 | -590.0 | 300 | 4.0 |
| PCC-38.1U-400 | 38.1 | -786.6 | 400 | 4.0 |
| PCC-38.1U-500 | 38.1 | -983.3 | 500 | 4.0 |
| PCC-38.1U-750 | 38.1 | -1474.9 | 750 | 4.0 |
| PCC-38.1U-1000 | 38.1 | -1966.6 | 1000 | 4.0 |
| PCC-38.1U-2000 | 38.1 | -3933.1 | 2000 | 4.0 |
| PCC-38.1U-3000 | 38.1 | -5899.7 | 3000 | 5.0 |
| PCC-38.1U -4000 | 38.1 | -7866.3 | 4000 | 5.0 |
| PCC-38.1U-5000 | 38.1 | -9832.8 | 5000 | 5.0 |
| PCC-38.1U-7500 | 38.1 | -14749.3 | 7500 | 5.0 |
| PCC-38.1U-10000 | 38.1 | -19665.7 | 10000 | 5.0 |
| PCC-50.8U-050 | 50.8 | -98.3 | 50 | 5.0 |
| PCC-50.8U-075 | 50.8 | -147.5 | 75 | 5.0 |
| PCC-50.8U -100 | 50.8 | -196.7 | 100 | 5.0 |
| PCC-50.8U -150 | 50.8 | -295.0 | 150 | 5.0 |
| PCC-50.8U -200 | 50.8 | -393.3 | 200 | 5.0 |
| PCC-50.8U -250 | 50.8 | -491.6 | 250 | 5.0 |
| PCC-50.8U -300 | 50.8 | -590.0 | 300 | 5.0 |
| PCC-50.8U -400 | 50.8 | -786.6 | 400 | 5.0 |
| PCC-50.8U -500 | 50.8 | -983.3 | 500 | 12.0 |
| PCC-50.8U -750 | 50.8 | -1474.9 | 750 | 10.0 |
| PCC-50.8U -1000 | 50.8 | -1966.6 | 1000 | 7.0 |
| PCC-50.8U -2000 | 50.8 | -3933.1 | 2000 | 6.4 |
| PCC-50.8U -3000 | 50.8 | -5899.7 | 3000 | 6.4 |
| PCC-50.8U -4000 | 50.8 | -7866.3 | 4000 | 6.4 |
| PCC-50.8U -5000 | 50.8 | -9832.8 | 5000 | 6.4 |
