Factory Customized Optical N- Bk7 Flat Window Fo Optical Instrument
N-BK7 windowsN-BK7 windows are ideally suited for industrial applications. Available uncoated or with a MgF2 anti-reflection coating, windows are often used as a protective element between two environments. Diameter0.2-300mmThickness0.1-100mmDimension tolerance+/-0.1mm or +/-0.02mmSurface quality (s......
Send Inquiry
Product Description

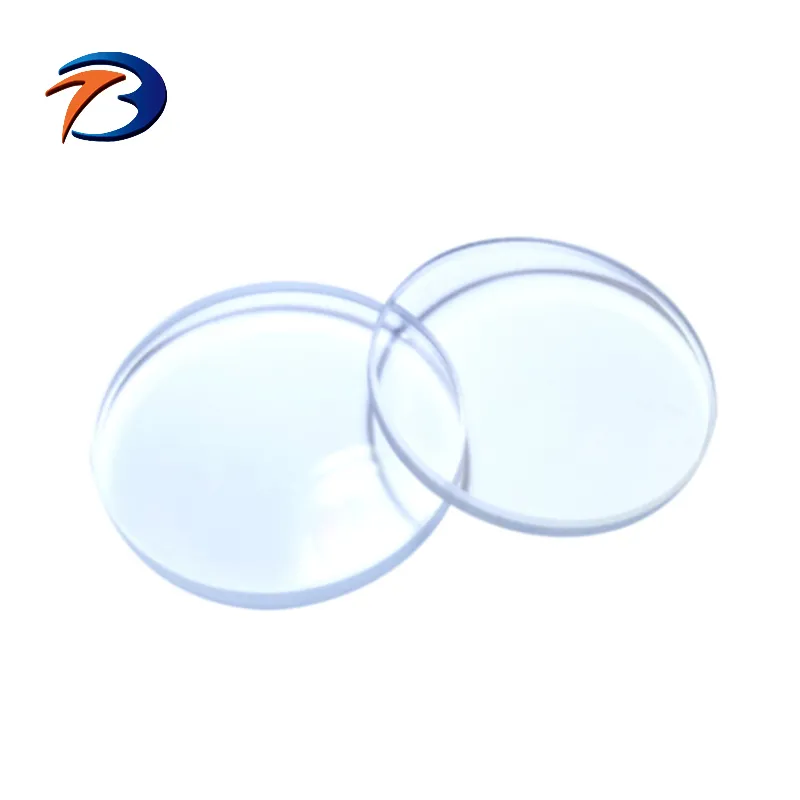

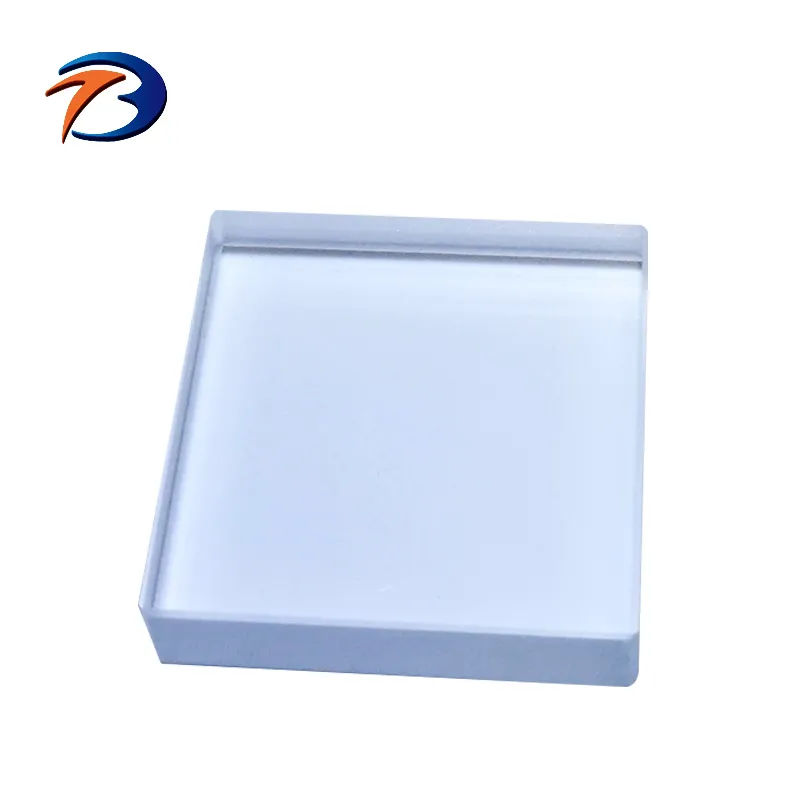

N-BK7 windows

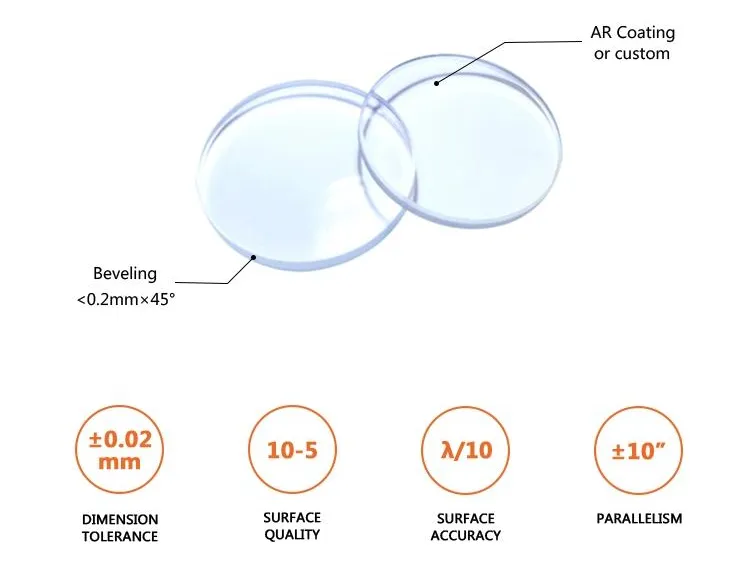

N-BK7 windows are ideally suited for industrial applications. Available uncoated or with a MgF2 anti-reflection coating, windows are often used as a protective element between two environments.

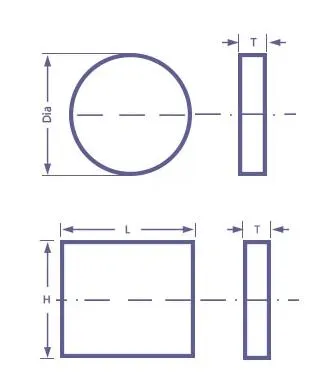

| Diameter | 0.2-300mm |
| Thickness | 0.1-100mm |
| Dimension tolerance | +/-0.1mm or +/-0.02mm |
| Surface quality (scratch & dig) | 60/40, 40/20 or better |
| Clear aperture | >85%, >90% |
| Surface accuracy | L/10 L/2 L |
| Parallelism | +/-3' ,+/-30'' |
| Bevel | 0.1~0.3mm x 45 degree |
| Coating | AR, BBAR or Custom |

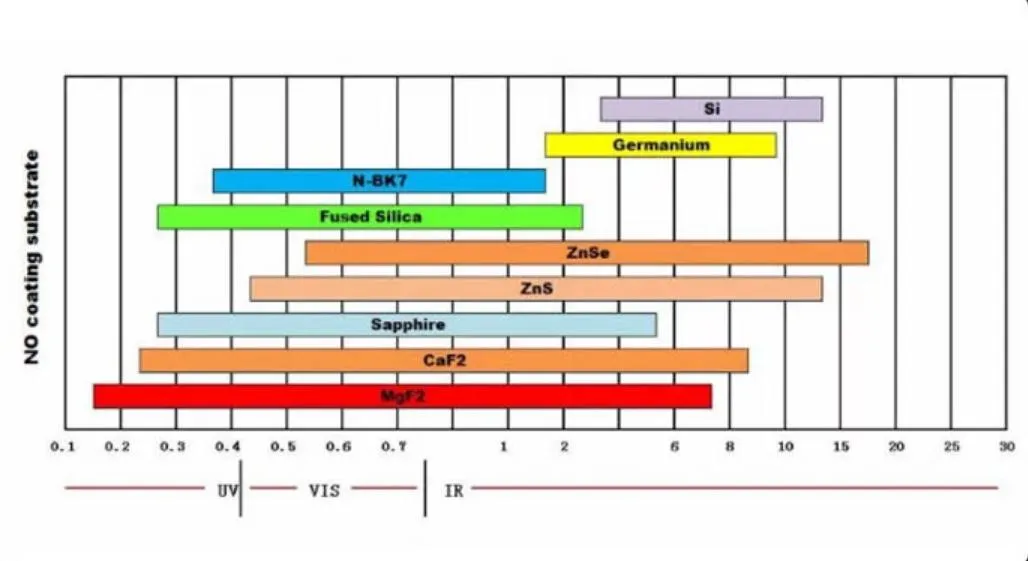

Shenyang Ebetter Optics Co., Ltd. offers standard and high precision optical windows in round,square, wedge shapes. We also support custom made optical windows in a variety of substrates, such as UV Fused silica, N-BK7, Germanium(Ge), Silicon(Si),Zinc Selenide(ZnSe). The high precision parallelism of 10 arc seconds, surface quality of 10/5 and flatness of λ/20.Single layer or multi-layer anti-reflection coatings are available.

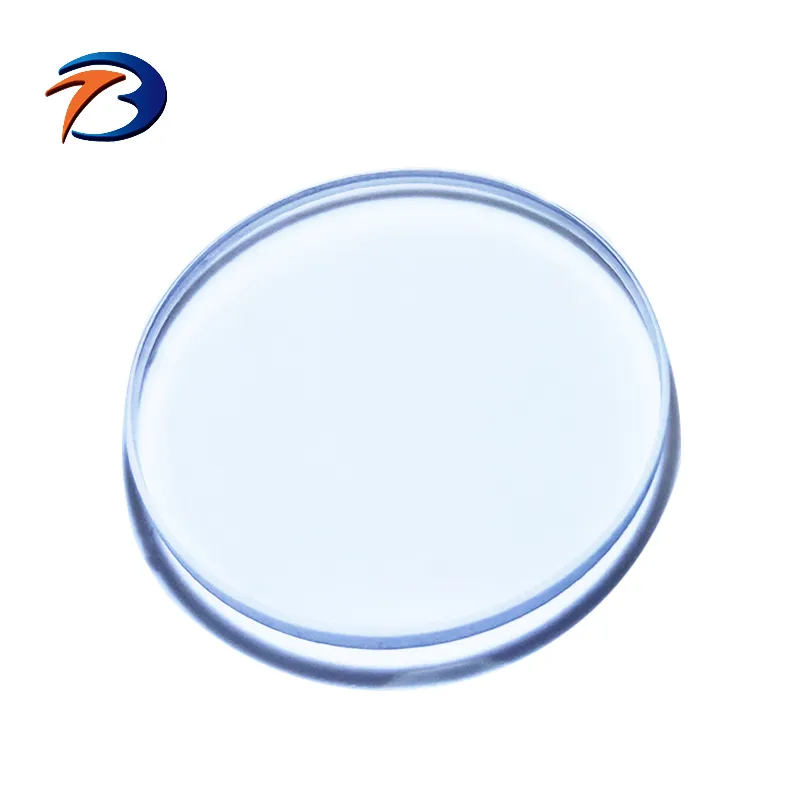

N-BK7 windows
