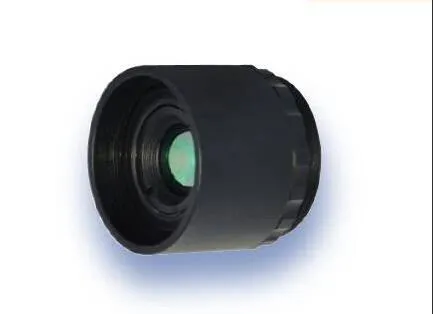

FL12mm F/1.0 Athermalized Optical Germanium Infrared Lens IR Camera Lens
OpticsFocal Length 12mmF/# 1.0Wavelength 8~12μmAverage Transmission ≥87%Detector 384*288 25μmBack Focal Length 12.8mmField of View 43.6°×33.4°MechanicalFocus Mechanism Fixed adjustableFocus Range 2m~∞Weight 92gDimensions φ38×......
Send Inquiry
Product Description
Optics
Focal Length 12mm
F/# 1.0
Wavelength 8~12μm
Average Transmission ≥87%
Detector 384*288 25μm
Back Focal Length 12.8mm
Field of View 43.6°×33.4°
Mechanical
Focus Mechanism Fixed adjustable
Focus Range 2m~∞
Weight 92g

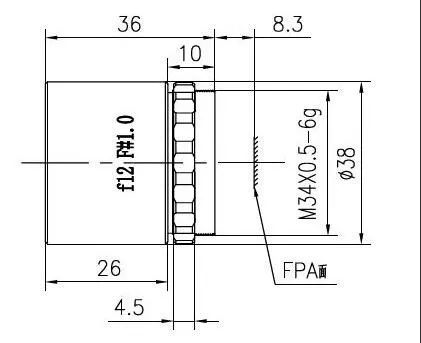

Dimensions φ38×36
Back Working Distance 8.3mm
Environmental
Operating Temperature -40ºC~+70ºC
Storage Temperature -50ºC~+80ºC
Sealing IP66(front lens only)
Coating AR
Mechanical Shock GJB150.16A
Vibration GJB150.18A
