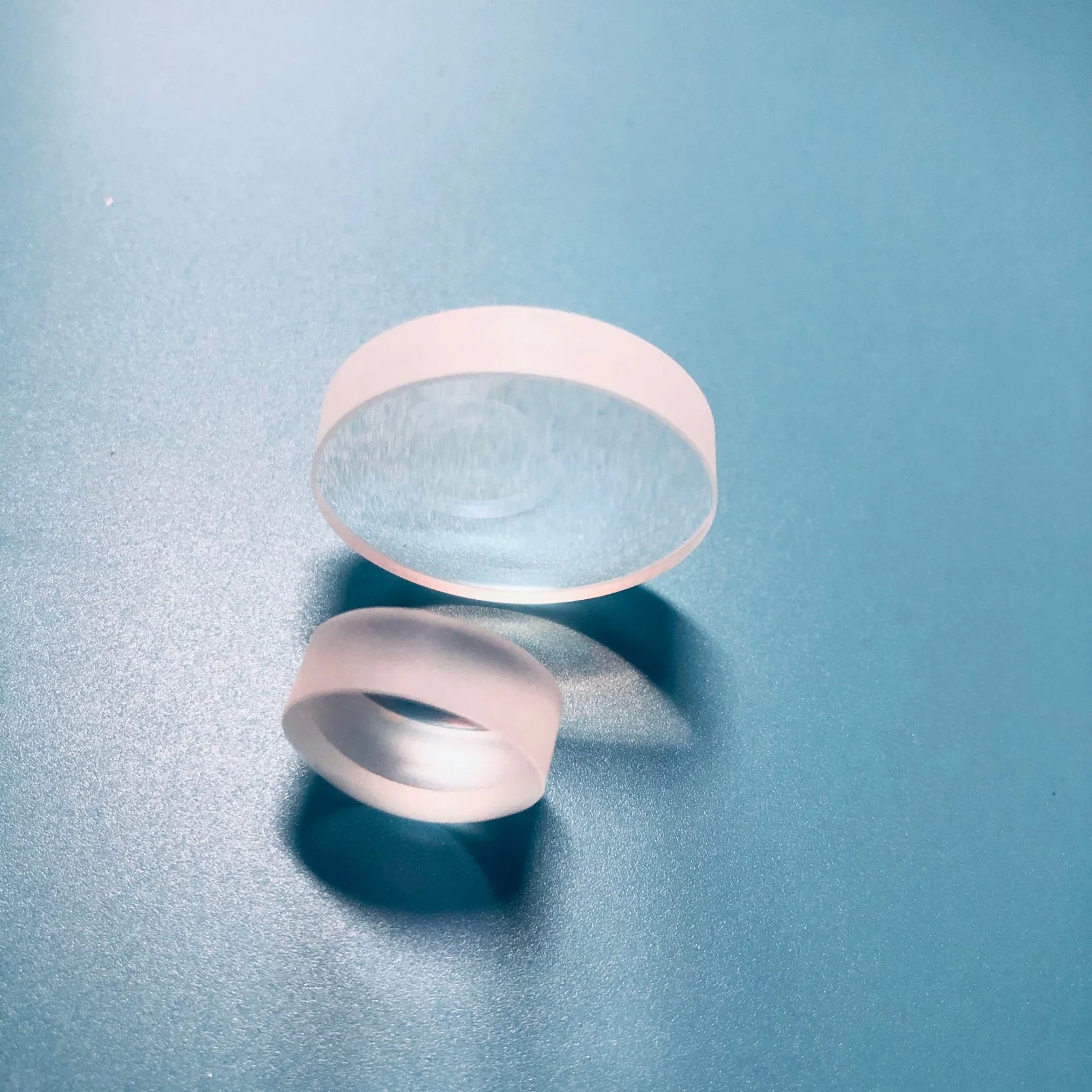

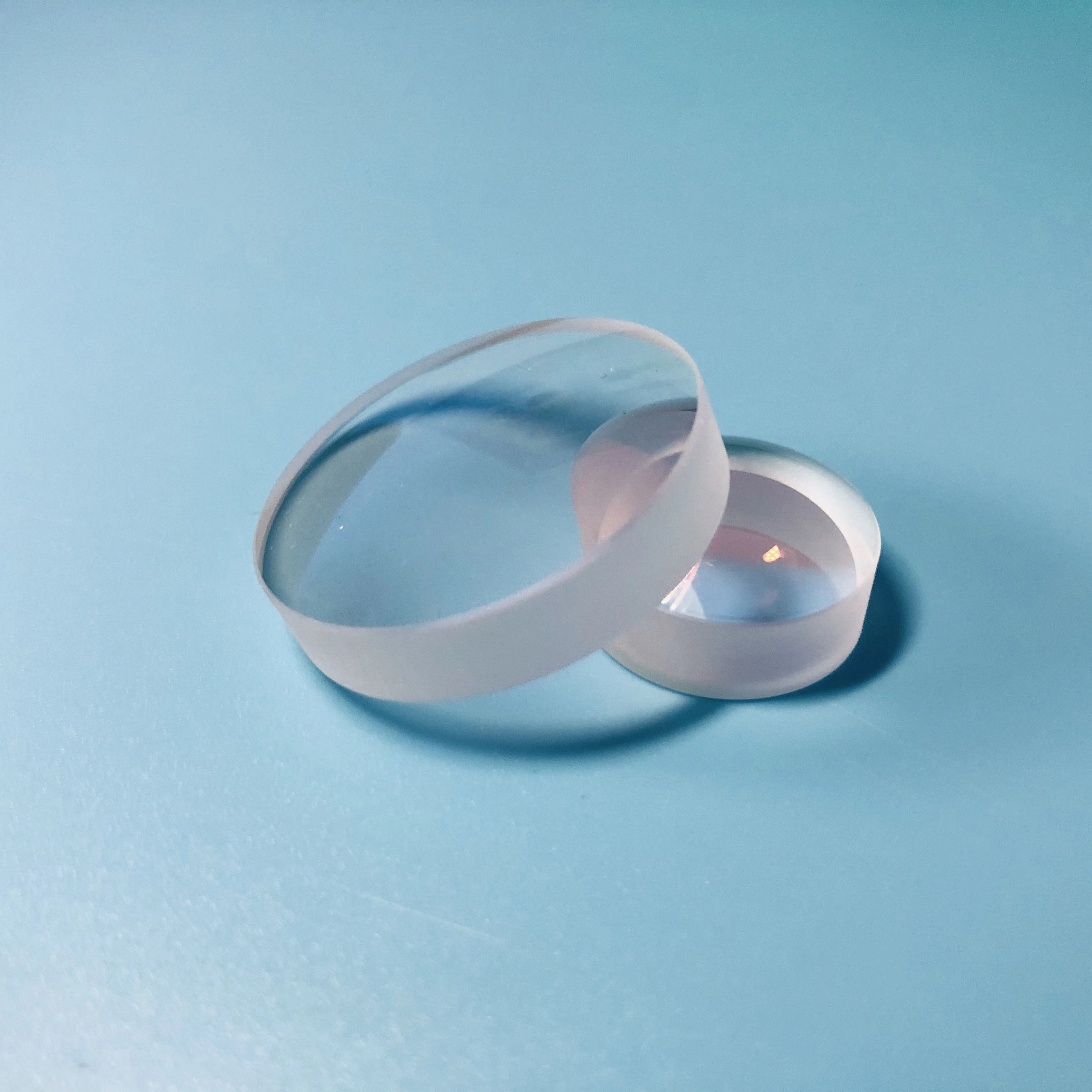

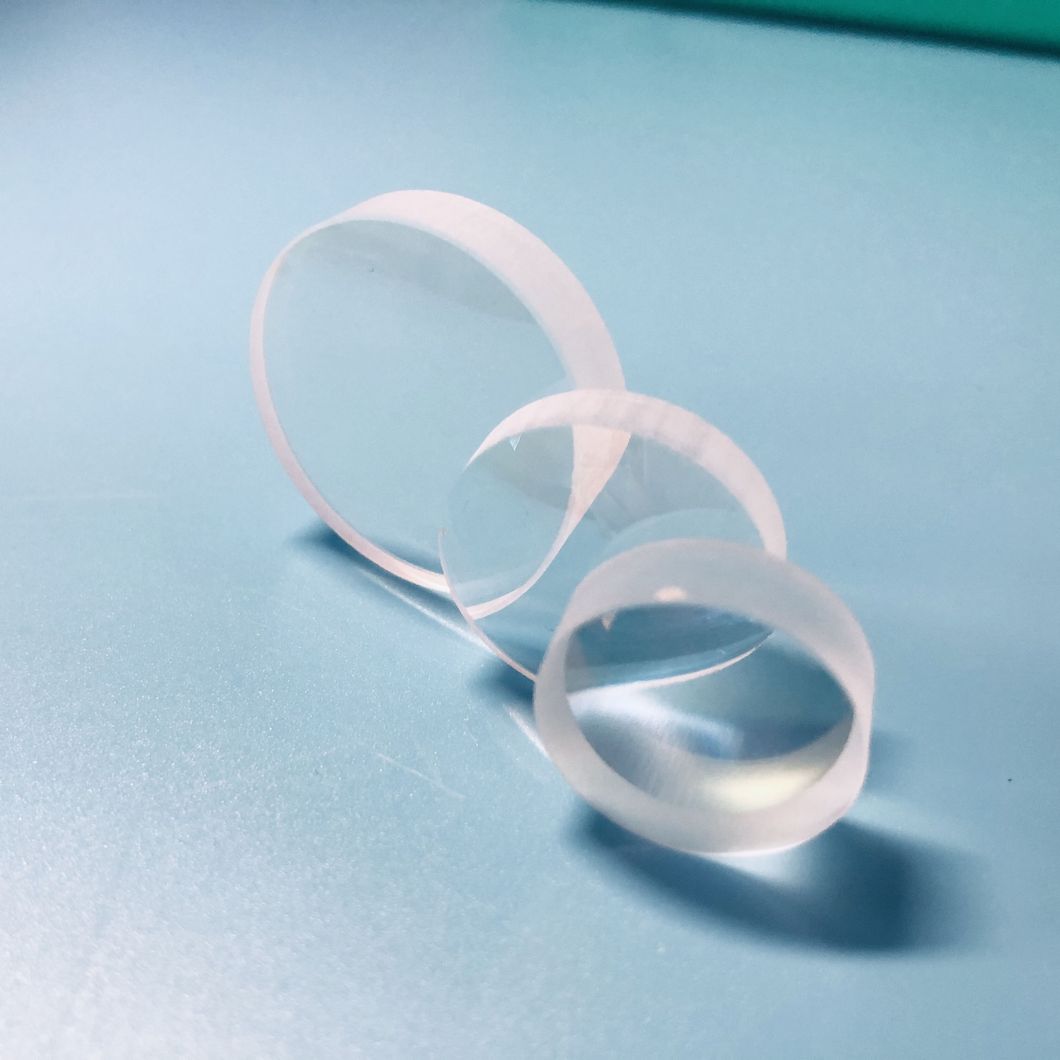

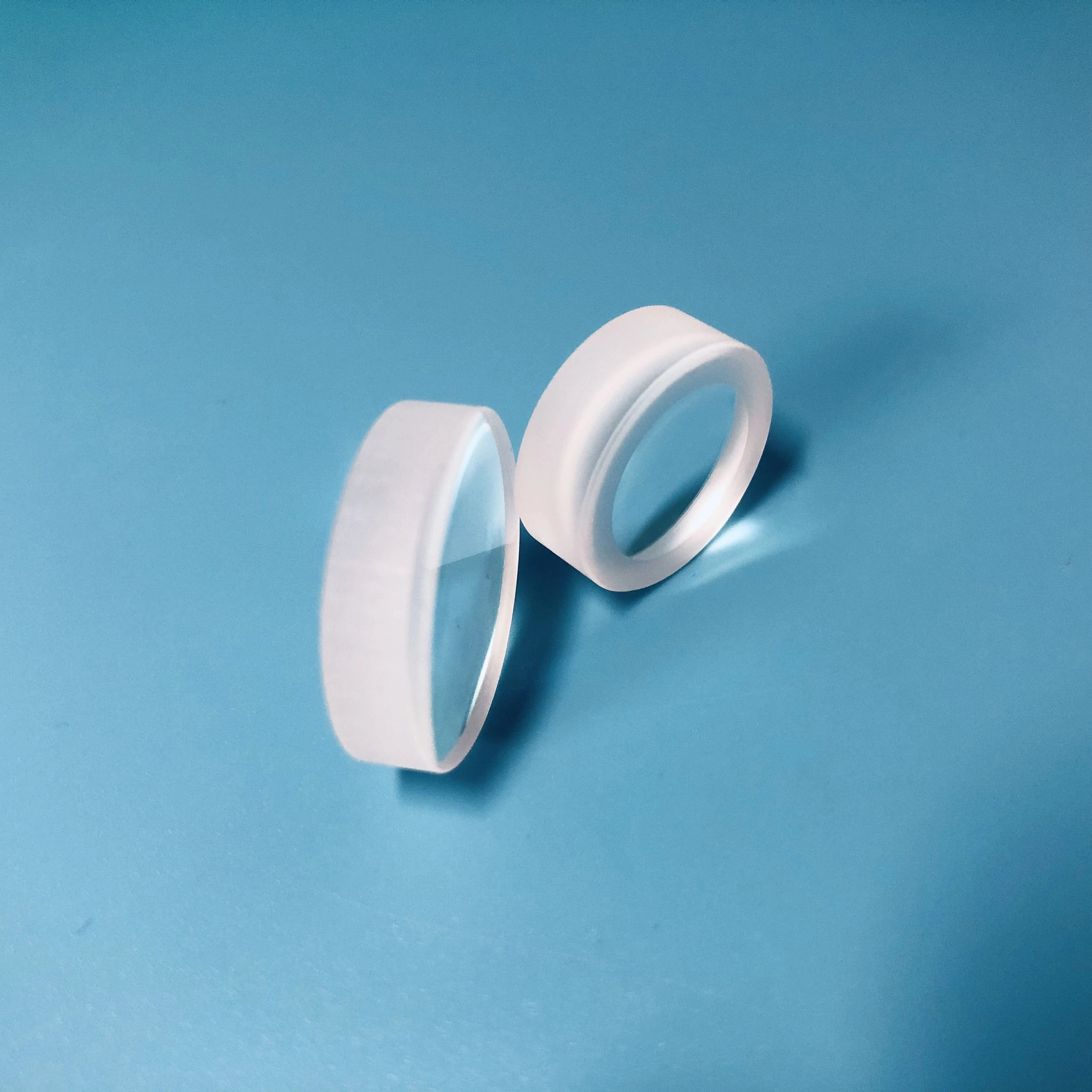

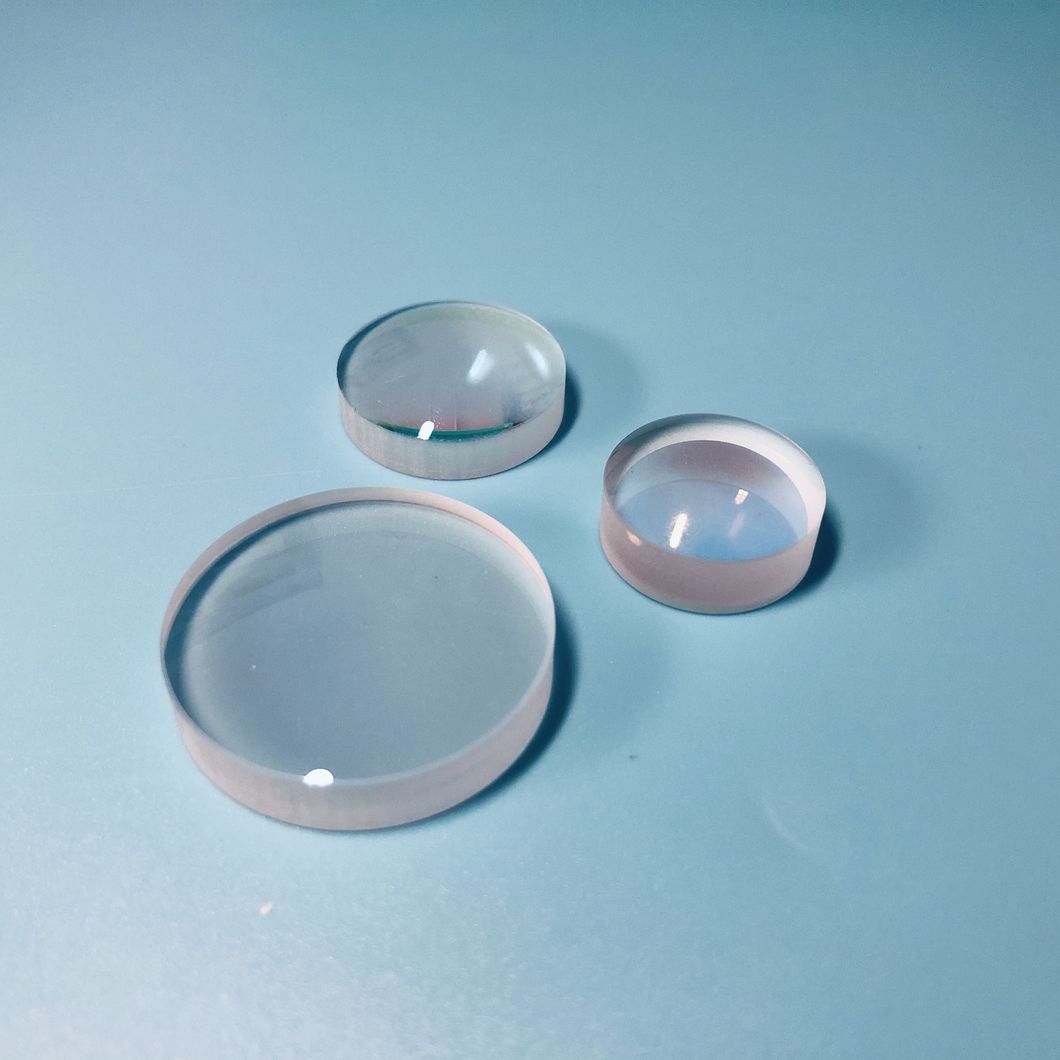

Optical IR Glass CaF2, Znse, Zns, Ge, Mgf2 and Si Meniscus Concave Convex Lens for Infrared Camera and IR System
CaF2(Calcium Fluoride)Calcium Fluoride is transparent from the UV to the IR (180 nm - 8.0 µm). It has a refractive index of 1.428 at 1.064 µm and is mechanically and environmentally stable. CaF2 is ideal for any demanding applications where its high damage threshold, low fluoresc......
Send Inquiry
Product Description
CaF2(Calcium Fluoride)
Calcium Fluoride is transparent from the UV to the IR (180 nm - 8.0 µm). It has a refractive index of 1.428 at 1.064 µm and is mechanically and environmentally stable. CaF2 is ideal for any demanding applications where its high damage threshold, low fluorescence, and high homogeneity are beneficial. It is popular in excimer laser applications and frequently used in spectroscopy and cooled thermal imaging.
Ge (Germanium)
Germanium Infrared (IR) Hybrid Aspheric Lenses provide diffraction limited focusing performance at any wavelength in the 3 - 5μm
region, and near diffraction limited performance when used over the entire 3 -5μm spectral range. They are ideal for integration
into imaging applications, FTIR spectrometers, or any Mid-Wave IR application utilizing a broad band light source.
region, and near diffraction limited performance when used over the entire 3 -5μm spectral range. They are ideal for integration
into imaging applications, FTIR spectrometers, or any Mid-Wave IR application utilizing a broad band light source.
ZnSe(Zinc Selenide)
Zinc Selenide has low IR absorption, and is transparent across a very wide 0.6-16 µm spectral range. This is advantageous for thermal imaging, where temperatures of remote objects are ascertained via their blackbody radiation spectrum. Long wavelength transparency is crucial for imaging room temperature objects, which radiate at peak wavelength of approximately 10 µm with very low intensity.ZnSe has a high index of refraction which requires an anti-reflection coating to achieve high transmission.
Si(Silicon)
Silicon offers high thermal conductivity and low density, making it suitable for laser mirrors. However, since silicon has a strong absorption band at 9 µm, it is not suitable for use with CO2 laser transmission applications. Silicon optics are also particularly well suited for imaging, biomedical. Our Quantum Cascade Lasers offer a number of output wavelengths for use with silicon optics. Silicon has a transmission range from 1.2 µm to 8.0 µm. Silicon has a refractive index of 3.423 at 4.58 µm.
MgF2 (Magnesium Fluoride)
MgF2 are well suited for deep-UV applications, even extending into the vacuum-UV region. They offer >50% transmission at 120 nm, making them suitable for use with excimer laser systems, as well as applications involving the Hydrogen Lyman-α line at 121 nm. TMgF2 are also usable in the UVA, UVB, visible and IR ranges, with approximately 94% transmission from 200 - 1000 nm, and approximately 95% transmission from 1 - 6 µm.
| Material | CaF2,ZnSe,ZnS,Ge,MgF2 And Si |
| Diameter | Customer's request |
| Center thickness | Customer's request |
| Edge thickness | Customer's request |
| Curvature | Customer's request |
| Wavelength Range (nm) | 350-16000 |
| Flatness | 1/4 lambda |
| S/D | 60/40 |
| Coating | Customer's request |

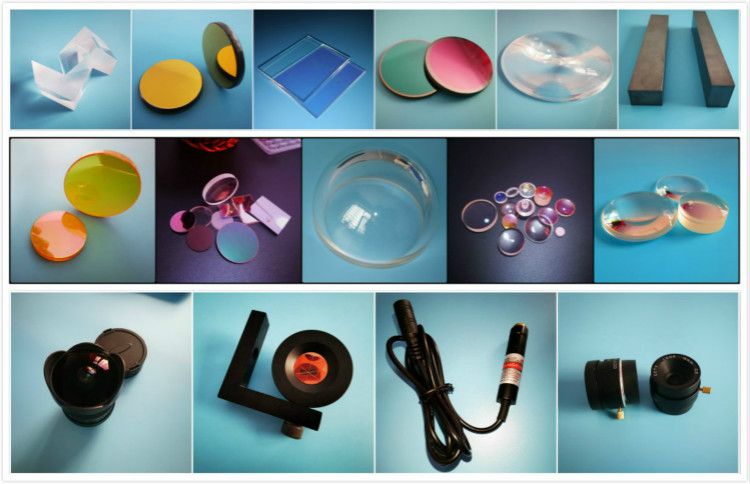

Other Items

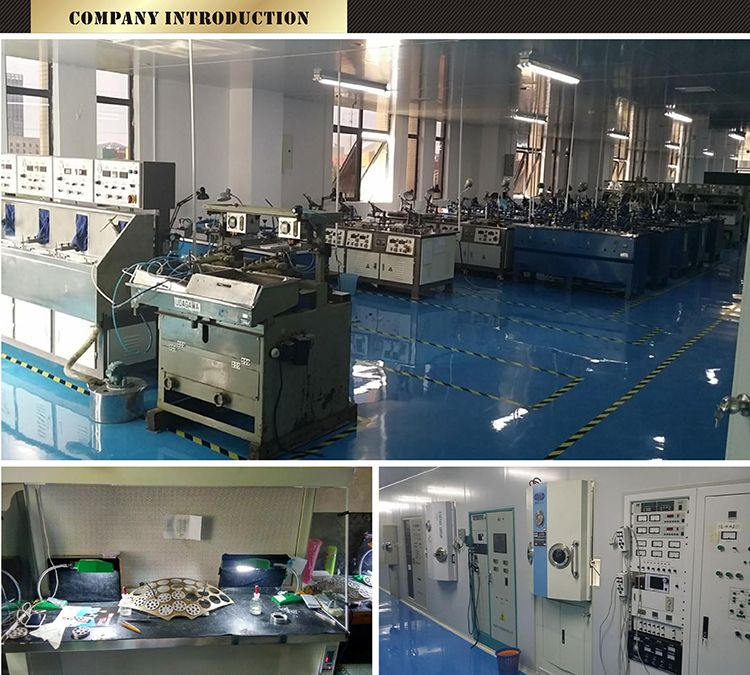

Factory information
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation.YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.
Our Advantage
Sells Team
Yutai Optics has a professinal sells team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.
Produciton Team
Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph, Grinding machine,nanotech.250upl,talysurfi120.
Inspection Team
Advanced testing equipment and methods are important guarantee for the production of high-precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.
Process for most optics
Material-cutting-rounding-milling-grinding-polishing-edging-cleaning-coating-gluing-edging-blacking-accembly-packing-shipping
Packaging & Shipping
1 Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2 Delivery Detail: Within 30 days.(Also depand on the quantity)
