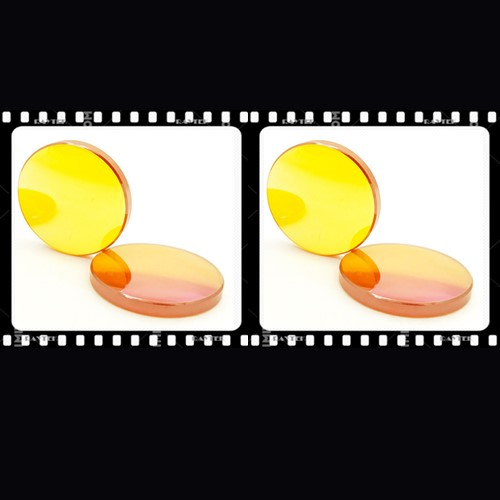

Zinc Selenide Optical Windows/Znse Optical Windows/Zinc Selenide Windows/Znse Lens
General Introduction: Raytek ZnSe window is an ideal choice for various infrared applications including high power CO2 laser system. ZnSe has low infrared absorption and high thermal shock resistance. However, due to the softness of the material, the window must be handled with care.Products Name: Z......
Send Inquiry
Product Description
General Introduction: Raytek ZnSe window is an ideal choice for various infrared applications including high power CO2 laser system. ZnSe has low infrared absorption and high thermal shock resistance. However, due to the softness of the material, the window must be handled with care.
Products Name: Zinc Selenide Optical Windows
Alias: Zinc Selenide Optical Windows, Zinc Selenide Windows, Zinc Selenide Optics Windows, Zinc Selenide Laser window, ZnSe Optical windows, ZnSe Parallel Windows, Zinc Selenide Infrared Window, Zinc Selenide IR window, ZnSe Infrared Lens, ZnSe Laser lens, ZnSe Optical lens, Zinc Selenide Optical Lens, etc
Lens Substrates:
Zinc Selenide (ZnSe)
Coating:
3 to 12μ m Broadband coating
ZnSe has high refractive index, so it needs to be coated with antireflective film to achieve high transmittance. Our broadband AR.20 coating is optimized for 3 to 12μM
Main Applying:
Products Highlights:
1).It is an ideal choice for high power CO2 laser applications
2).The absorption of infrared radiation is very low
3).Good thermal shock resistance
4).3 to 12aμm Broadband Infrared Antireflective Coatings
5).Soft materials are not recommended for harsh environments
6).Low dispersion and absorption coefficient
7).Suitable for environment with strict heat resistance and demanding
8).Different grades materials for option.
9).High precision & high surface roughness;
10).Sizes can be customized as per the customers' request
11).Quick lead time and delivery time.
12).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
13).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
Popular Physical Size Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
Products Name: Zinc Selenide Optical Windows
Alias: Zinc Selenide Optical Windows, Zinc Selenide Windows, Zinc Selenide Optics Windows, Zinc Selenide Laser window, ZnSe Optical windows, ZnSe Parallel Windows, Zinc Selenide Infrared Window, Zinc Selenide IR window, ZnSe Infrared Lens, ZnSe Laser lens, ZnSe Optical lens, Zinc Selenide Optical Lens, etc
Lens Substrates:
Zinc Selenide (ZnSe)
| Optional I: | Zinc Selenide (ZnSe) from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: | Equivalent Zinc Selenide (ZnSe) Made in China, C-laser own brands |
Coating:

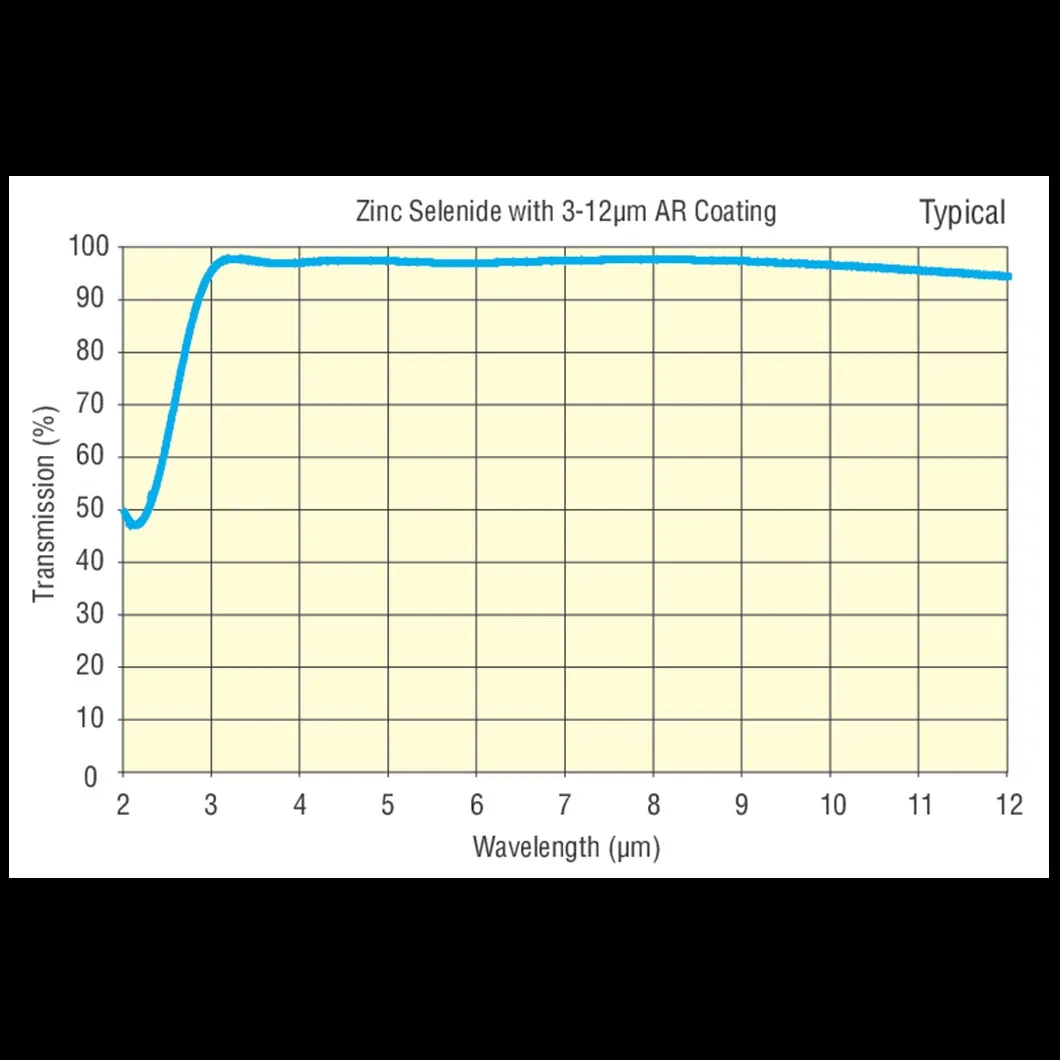

3 to 12μ m Broadband coating
ZnSe has high refractive index, so it needs to be coated with antireflective film to achieve high transmittance. Our broadband AR.20 coating is optimized for 3 to 12μM
Main Applying:
| Applying Fields I: | High power CO2 laser system. Infrared thermal imaging equipment |
| Applying Fields II: | Infrared imaging applications in scientific, study or search and rescue applications. |
| ***** |
Products Highlights:
1).It is an ideal choice for high power CO2 laser applications
2).The absorption of infrared radiation is very low
3).Good thermal shock resistance
4).3 to 12aμm Broadband Infrared Antireflective Coatings
5).Soft materials are not recommended for harsh environments
6).Low dispersion and absorption coefficient
7).Suitable for environment with strict heat resistance and demanding
8).Different grades materials for option.
9).High precision & high surface roughness;
10).Sizes can be customized as per the customers' request
11).Quick lead time and delivery time.
12).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
13).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
| Lens Shape | Optical Parallel Window | Surface Accuracy Irregularity | - |
| Lens Material | CVD Laser Grade ZnSe(Zinc Selenide) | Diameter Tolerance | 10ZS: ±0.2 mm ZNW: +0.0/-0.1 mm |
| Antireflection Coating | 3 to 12μm Broadband coating | Thermal Expansion Coefficient | 7.1 x 10-6 K-1 @ 273 K |
| Coating Type | - | Thermal Limit | 18 W m-1 K-1 @ 300 K |
| Damage Threshold | - | Wavelength Range | - |
| Thickness Tolerance | - | Wedge | - |
| Surface Quality | 40-20cratch-dig | Clear Aperture | 10ZS: central 85% of diameter ZNW: central 90% of diameter |
| Surface Flatness | λ/20 @ 10.6 µm | OEM/ODM | Accepted |
Popular Physical Size Specification:
| Basic Data | Value |
| Popular Dia.Value I | 12.7mm/25.4mm/50.8mm,etc |
| Matching Thickness I | 2.0mm/3.0mm |
| Surface Flatness I | λ/20 @ 10.6 µm |
| Parallelism(Wedge) I | ≤3 arc min; |
| AR. Coating Model I | Uncoated |
| Popular Dia.Value II | 12.5mm/15.0mm/25.0mm 30.0mm/40.0mm/50.0mm/75.00mm,etc |
| Matching Thickness II | 2.0mm/3.0mm/4.00mm/6.00mm,etc |
| Surface Flatness II | λ/2 at 632.8nm |
| Parallelism II | ≤1arc min; |
| AR.Coating Model II | 3-12um |
| Other Size Speicification | Custom manufacturing as per demand |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
