New Binoculars Telescope for Long Range Powerful Night Vision Scope High Definition Waterproof Night Vision Goggles Binoculars
A. Model Explanation:The 1st letter "D": the abbreviation of our brand Dawn.The 2nd letter "D": Binocular (the device type).The 1st number 2/3: generation 2 / 3 (IIT grade).The 2nd and 3rd number 02: item numbers.The 4th number 1: magnification for objective lens.B. Product descr......
Send Inquiry
Product Description
A. Model Explanation:
The 1st letter "D": the abbreviation of our brand Dawn.
The 2nd letter "D": Binocular (the device type).
The 1st number 2/3: generation 2 / 3 (IIT grade).
The 2nd and 3rd number 02: item numbers.
The 4th number 1: magnification for objective lens.
B. Product description:

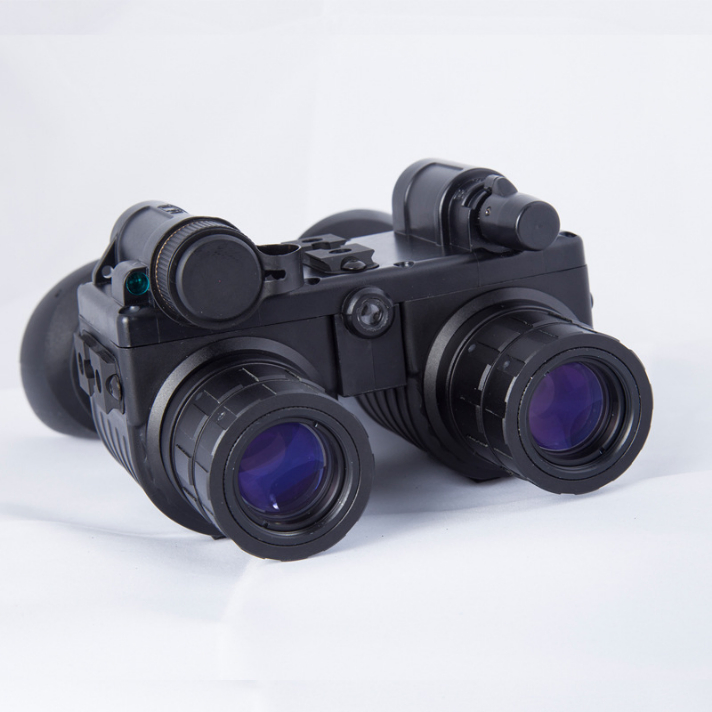

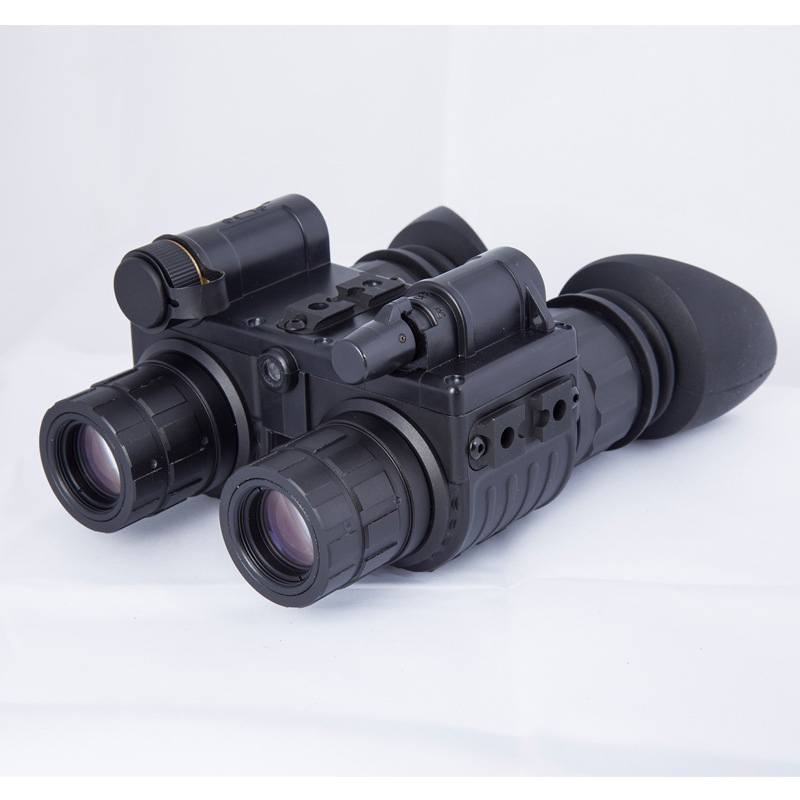

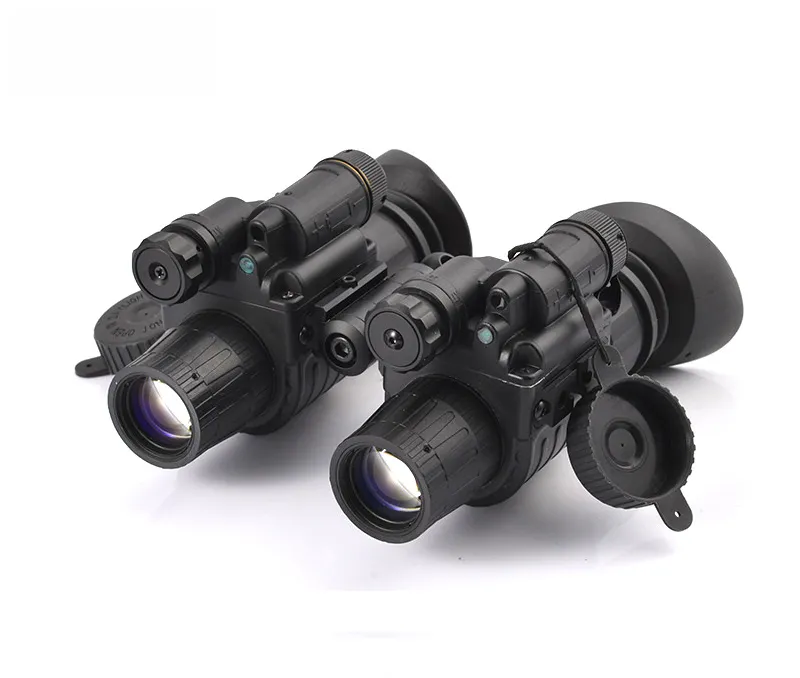

D-D2021 and D-D3021 are compact, lightweight and night vision binocular. They utilize two high performance image intensifier tubes to provide extremely clear and crisp images under the darkest conditions. A built-in IR illuminator lets the users easily read a map and function in a total darkness environment. It can be used handheld, head mounted or helmet mounted for hands-free, or attached to a camera or camcorder for nighttime photography and law enforcement to document. This system enables walking, driving, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. With automatic protective system controls, the monocular will shut off automatically if the illumination level surpasses 40lux for the following 10seconds. And automatic brightness adjustment system always keeps IIT brightness level constant.They're easily replaced with 3x,5x,6x lens for enhanced range performance.
C. Kit includes:
Night Vision Goggle, Flip-up head mount, Protective carrying bag, Instruction manual, Lens cleaning cloth, Warranty card, Desiccant
D. Features:
1. IP66 weatherproof: The device can prevent the domestic water.
2. Automatic shut off when flipped up: The device will turn off automatically when pushing a button on the side of mount and lifting the unit up until reaches in the top position. Push the same button to lower monocular to the viewing position, then the device will turn on for continuation of operation.
3. No power consumption when in standby: It means no power consumption in case you forget to remove the battery for some days.
4. Embedded spring in battery's cap: It makes screwing the cap easier and better protects the spring and contact with the battery.
5. Fully adjustable head mount: The head mount can be adjusted according to head size.
6. Mil-spec multi-coated optic: Multi antireflection film can restrain the reflex of lens, which can reduce the loss of light so more light can go though the lens to get a sharp image.
7. Automatic brightness control: When the ambient light changes, the brightness of the image detected will keep the same to insure a stable viewing effect and also to protect users' eyesight.
8. Bright source protection: The device will shut off automatically in 10 seconds to avoid the damage of the image intensifier tube when the ambient light exceeds 40 Lux.
9. Low battery indication: A greenish light in the edge of eyepiece will start flickering when the battery is running low.
E. Specifications:
| Model | D-D2021 |
| IIT | GEN2+ |
| Resulution (lp/mm) | 45-64 |
| photocathode type | S25 |
| S/N db | 12-20 |
| Luminous sensitivity | 450-550 |
| MTTF hours | 10000 |
| magnification | 1X |
| FOV deg | 40 |
| Detection distance | 220-280M |
| Diopter (deg) | +5/-5 |
| Lens system | F1.2, 25.8mm |
| Range of focus(m) | 0.25--∞ |
| Dimensions(mm) | 140*150*56 |
| Weight(g) | 782 |
| Power supply(v) | 2.0-4.2V |
| Battery type(v) | 13v CR123Alithium battery |
| Battery life(hrs) | 80(w/o IR) |
| 40(w IR) | |
| Operating temperature(ºC) | -50/+60 |
| Storage temperature(ºC) | -50/+70 |
| Environmental rating | IP66 |
F. Precautions
1. Do not disassemble the unit.
2. It's better to use device under +5°C to +40°C. After the unit usage in temperatures below zero, wait at least 3 hours at room temperature, to avoid condensation accumulating on the internal lens surfaces and the consequent fogging caused by extreme temperature differences.
3. Keep the device in soft carrying bag, ventilated and dry place with temperature which does not exceed +15°C. Keep away from heating device and avoid direct sunlight and high humidity which does not exceed 70%.
4. NVD should be used in nighttime and can't be aim at strong light. If you have to test it during daytime, the front lens cap should never be removed. You can observe the target through the hole in the protection cap.
5. Use good quality lithium battery or alkaline cell, as bad quality batteries will effect the performance of the NVD and easily damage the device.
6. Try to avoid the rain and mist, and avoid dropping, shaking and collision.
7. Use clean soft cloth and dampened in alcohol, if necessary.
8. A useful tip is to remove the battery when the night vision will be not in use for over 3 days to prevent battery leakage and damaging the device.
NOTE: It is normal that the device can not be turned on when the ambient light exceeds 40 Lux. This device has protection system, which cuts off the image intensifier when ambient light level exceeds the limit of 40 Lux during a 10 seconds period.
Failure to follow the above precautions may cause the unit damage and will void the manufacturer's warranty.
G. Troubleshooting:
If the device does not turn on
1.Re-install the battery with the correct polarity.
2.Replace battery.
3.Clean the battery compartment, focusing on the contact points.
The observed image flickers or flashes
This means there is too much light(e.g. observation during twilight conditions).Turn off the unit or place the objective lens cover. The unit will function normally in light conditions not in excess of 0.1Lx(full moon).
The image is missing or not focused
1.Re-focus the unit by adjusting objective lens. Adjust diopter setting by rotating eyepiece, if necessary.
2.Check the cleanliness of the objective surface and eyepiece and clean if necessary.
3.Replace batteries.
4.In extreme low light conditions, activate the built-in IR illuminator.
Image disappeared or its quality worsened
1.Automatic shut off might occurred to protect the unit from excessive light. Attach the objective lens cover and ensure that unit started to function normally. Turn the unit off and wait until the conditions darken to continue observation.
2.Bright light sources(e.g. street lights)may cause visibility to decrease or disappear. Turn the monocular away from the light source, visibility will restore itself in several minutes.
You see black dots on the screen
These dots are minor cosmetic blemishes resulting from the image intensifier production processes and are not a sign of a defective or low quality unit. These dots do not interfere with the reliability and performance of the goggles.
