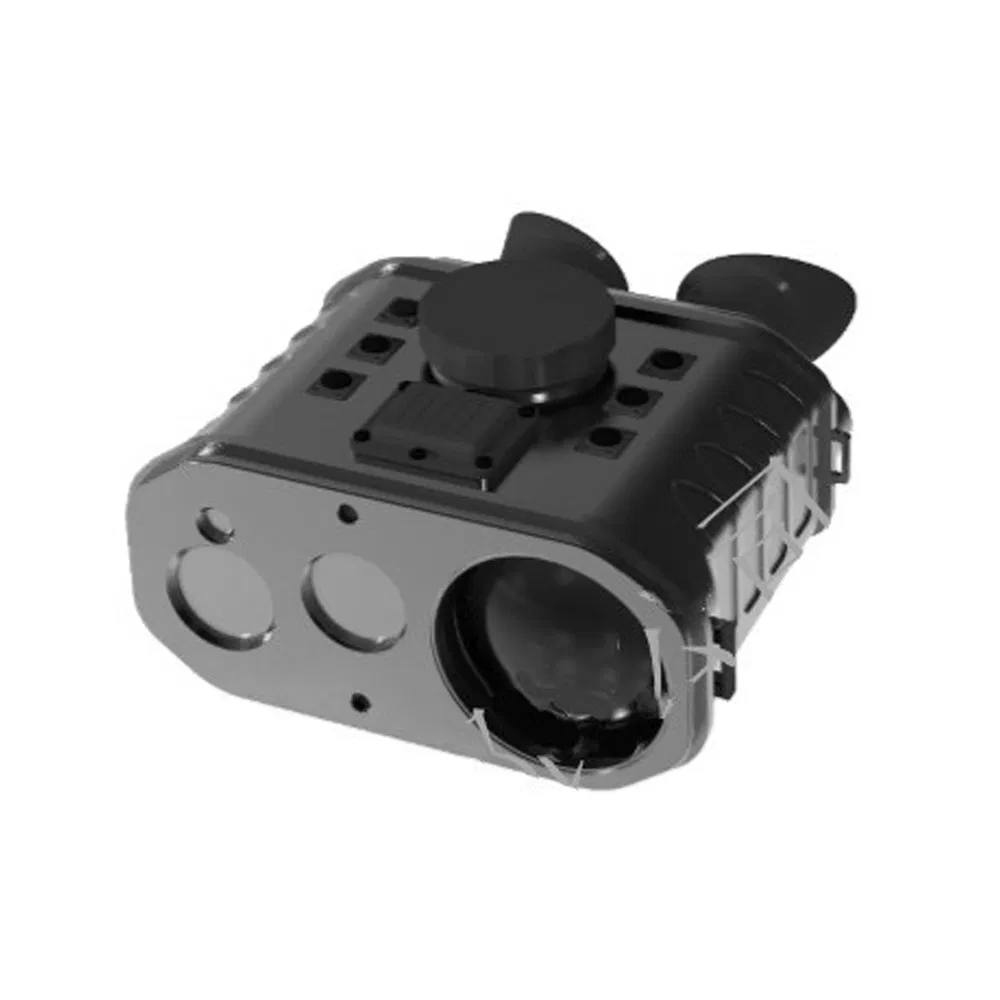

Uncooled Infrared Thermal Imager Laser Long Rangefinder Binocular with GPS
Introduction:Specially designed for long distance mobile observation. With the latest uncooled infrared thermal imager system, optical camera system, laser rangefinder, digital compass, GPS module and so on, it could search and observe object of vehicle in 6.5km and could search and observe object o......
Send Inquiry
Product Description
Introduction:
Specially designed for long distance mobile observation. With the latest uncooled infrared thermal imager system, optical camera system, laser rangefinder, digital compass, GPS module and so on, it could search and observe object of vehicle in 6.5km and could search and observe object of human in 2.5km.
Application:
Patrol, surveillance, detection, security surveillance, military, border, customs security.
Features:
Auto / manual focus support

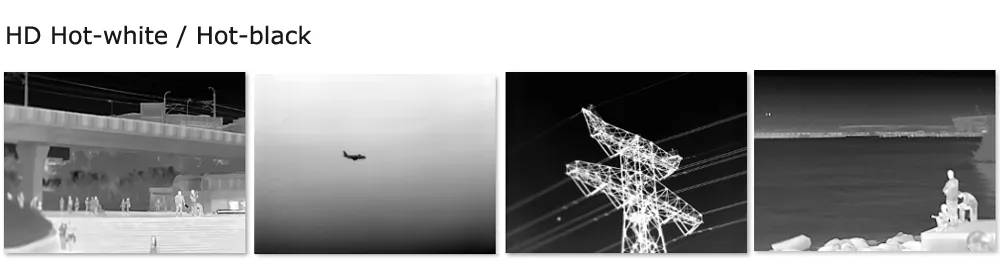

Support white hot / black hot / polarity switching
Support 4x digital zoom
Support picture in picture
Support image brightness adjustment
Size image contrast adjustment
Display / Off of cross dash dimension image
Laser finder
GPS: Support self-positioning
Electronic compass
Support the function of electronic compass to indicate azimuth angle and attitude angle
Video recording
Images:
Support storage of infrared and visible images
Support online playback of pictures
USB digital reading under Windows / Linux / OSX operating system is supported
Support storage of up to 3000 to 10000 pictures
| Thermal Imager | |
| Wavelength range | 7mm~14mm |
| Detection distance | 6.5km for vehicle, 2.5km for human |
| Identification distance | 1.8km for vehicle, 700m for human |
| Field of view angle | ≥6° x 4.5° |
| Lens parameters | 75mm |
| Detector parameters | 640 x 512 |
| Visible Imager | |
| Recognition distance (2.3m x 4.7m target) | ≥6km |
| Recognition distance (1.8m x 0.5m person) | ≥3km |
| Lens parameters | 10x Optical Zoom |
| Focal length | 5.1mm~51mm |
| Detector type | Full HD Color Detector |
| Electron doubling | 1X ~ 4X |
| Pixel parameters | 1920×1080 |
| Laser Rangefinder | |
| Maximum range | ≥2km |
| Minimum range | ≤5m |
| Ranging accuracy | ±1m |
| wavelength | 900 ~ 908nm |
| Digital Compass | |
| Horizontal positioning accuracy | ≤5m(CEP) |
| Elevation positioning accuracy | ≤10m(PE) |
| Angle measurement accuracy | ≤0.5° |
| Image Display | |
| Type of OLED | 1920 X 1080Colour OLED |
| Digital Zoom | 1X ~ 4X |
| Palette | White Hot, Black Hot, Red Hot, Pseudo Colour |
| Interface | |
| Standard Interface | USB, Video, RS232;12V Adapter |
| External Power Supply Interface | Power Input Range: 9V ~ 28V |
| Video Storage | |
| Image Size | 1920 x 1080 (Visible);640 x 512 (Infrared) |
| Video | 1920 x 1080@25Hz |
| SD and Storage time | 128G;8 hours |
| Power supply | |
| Battery | 18650/4 Batteries |
| Operational Hour | ≥4 hours (Under room temperature) |
| Environmental Adaptive and Physical Characteristic | |
| Operation Temperature Range | -40°C ~ +55°C |
| Protection | IP66 |
| Weight | 1.6kg |
 | |||
